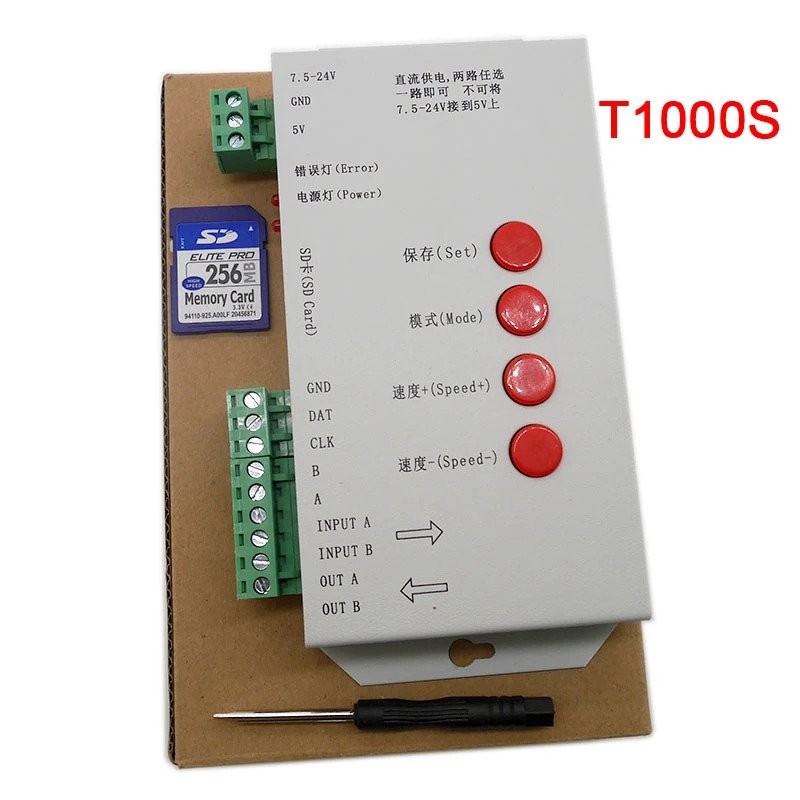

T1000S 2048px DMX 512 Valdiklis su SD kortele (WS2812 moduliams 5V/12V/24V)

d3795

Nauja prekė

Į bendrą liniją jungiamų RGB LED modulių (Pvz. su WS2812) ir šviestuvų, prožektorių valdymo kontroleris. Atkartoja kompiuteriu (LedEdit programa) sukurtas apšvietimo sekas. Gali būti jungiami keli tokie valdikliai, kad valdyti dar didesnes nei 2048 RGB LED'us turinčias šviesos instaliacijas.

Smulkiau

Prekių kiekis mūsų sandėlyje: 2

Dėmesio: Paskutinės prekės!

37,69€ su PVM


31,15€ be PVM

Charakteristikos

Suderinama su Arduino™ ir *duinoTaip
MikrovaldiklisATmega328P-AU
Nominali darbinė įtampa5V
Maitinimo įtampa3,3-7,5V (DC)
Maksimali nuolatinė pavienio išėjimo srovė58mA kiekvienam RGB LED'ui
Jungties žingsnis2,54mm
Matmenys60 x 60
USBNe
Komunikacijų sąsajosUART, IIC (programavimui: UART, ISP )
Spalvos16M spalvų
Pagrindinės funkcijos grandynasATMEGA328P, M54564, DM163

Apie prekę

Memory card:

type:SD card

Capacity:128MB-2GB

Store file:*.led

Physical parameters:

Working temperature :-30-85degree celsius

Working voltage:DC5V / DC7.5-24V

Working power:2W

Weight:0.3kg

Size:L165mm×W80mm×H30mm

Signal port:3pin connect port

T-1000S System features
1.32-65536 Gray,Support software Gamma correction.

2.Support point, line, surface, rules and special-shaped handle.

3.Single-port output,can support 2048 pixels.

4.Multiple controllers can be cascaded together and work synchronous,

play back content stored in the SD card.

5.Compatible with single line or double line chips.

NOTE:

When T1000S controller load less than 512 pixels the frame rate can reach 30fps.

When T-1000s control more than 512 pixels the frame rate will slow down automatically.

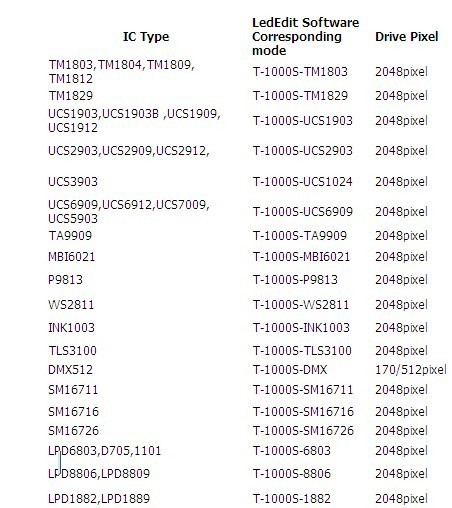

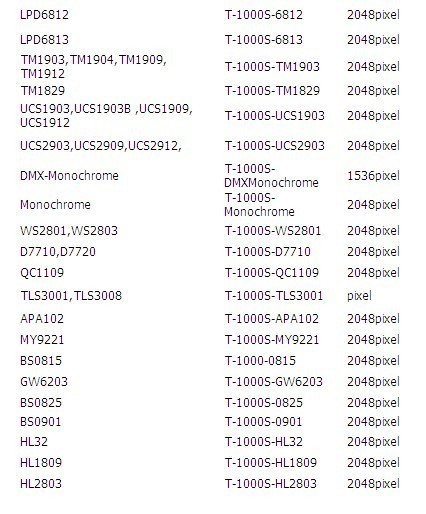

Support IC (one IC symbolize a pixel point):

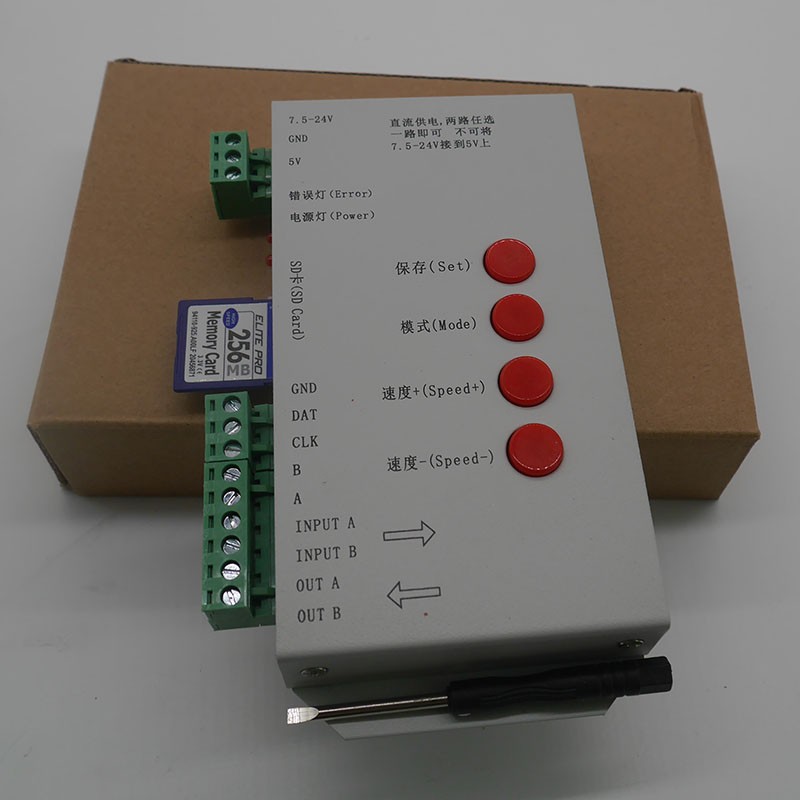

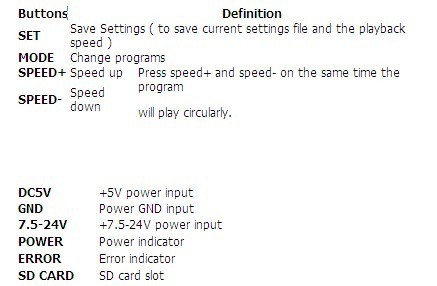

 Definition of buttons:



Features:

1. 256 Gray, Gama correction processing software.
2. Support the rules and special-shaped handle.
3. Controller, a port output, may bring 1024/2048 light.
4. Off-line control, play back content stored in the SD card
5. T-1000C store a maximum of 16 documents
Note: The model T-1000S with one port output, When it control 512  pixels the speed can reach 30fps, more than 512 pixels, the frame speed will be slow down automatically

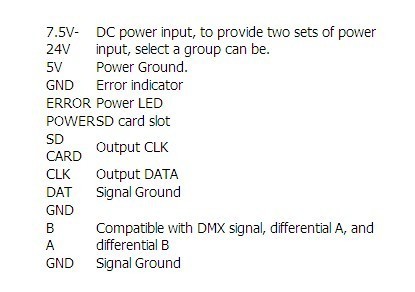

Connection diagram:

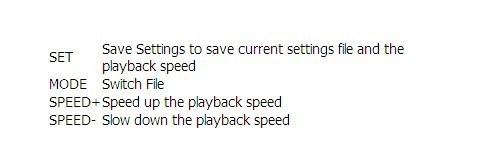

Regulatory function button:

Specific parameters:

Memory Card:
. Type: SD Card
. Capacity: 128MB-2GB
. File Format: FAT file format
. Store files: *.led
Physical parameters:
. Weight:0.2kg
. Size:122mm*67mm*25mm
. Temperature :-40-85 Degree
. Voltage: DC5V / DC7.5-24V
. Power:3W



Note:

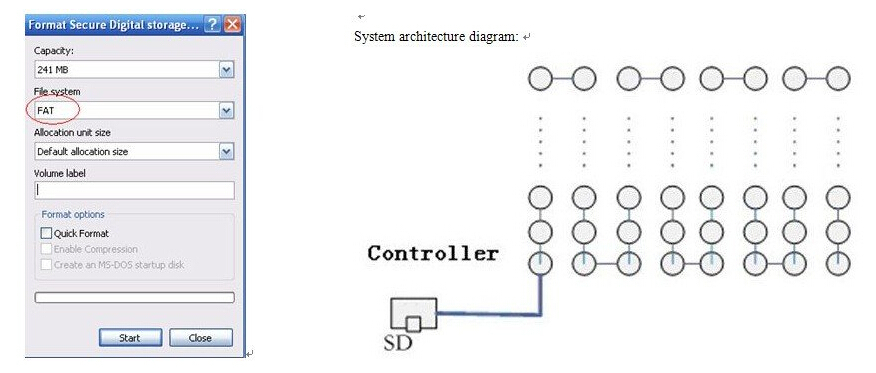

To copy files to SD card, you must first format to the SD card, pay attention to is that each copy must be formatted before.
SD card must be formatted as "FAT" format.

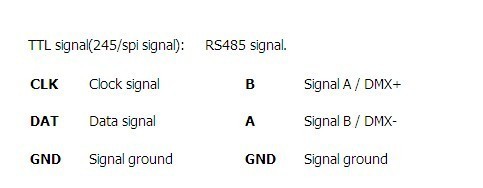

NOTE: For the TTL(SPI) signal, the controller signal ground must connect to

the LED lamp ground directly.



Package included:

1pc T1000S led Controller

1pc * SD Card
