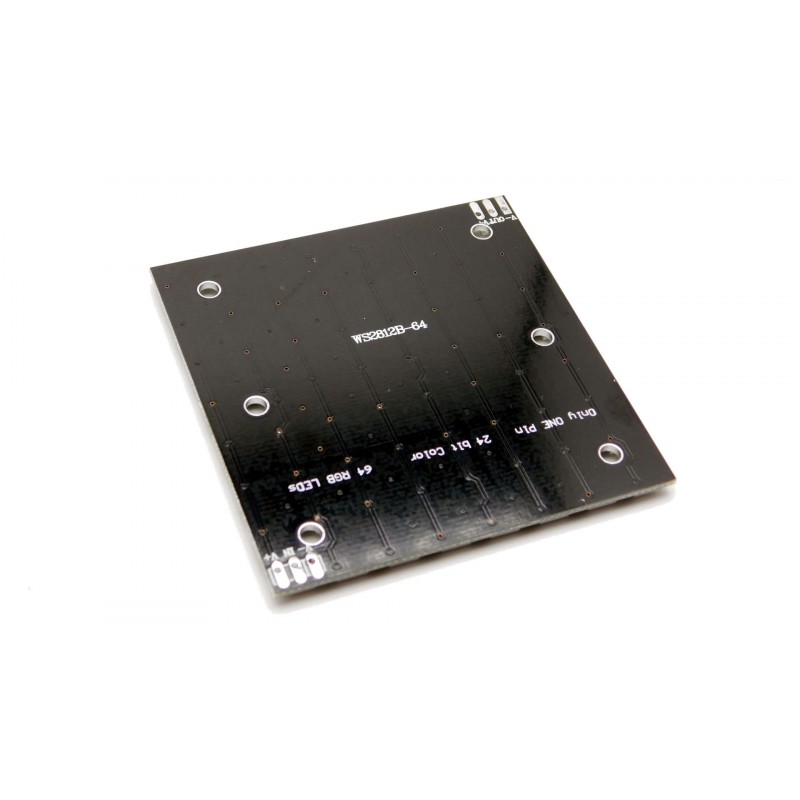

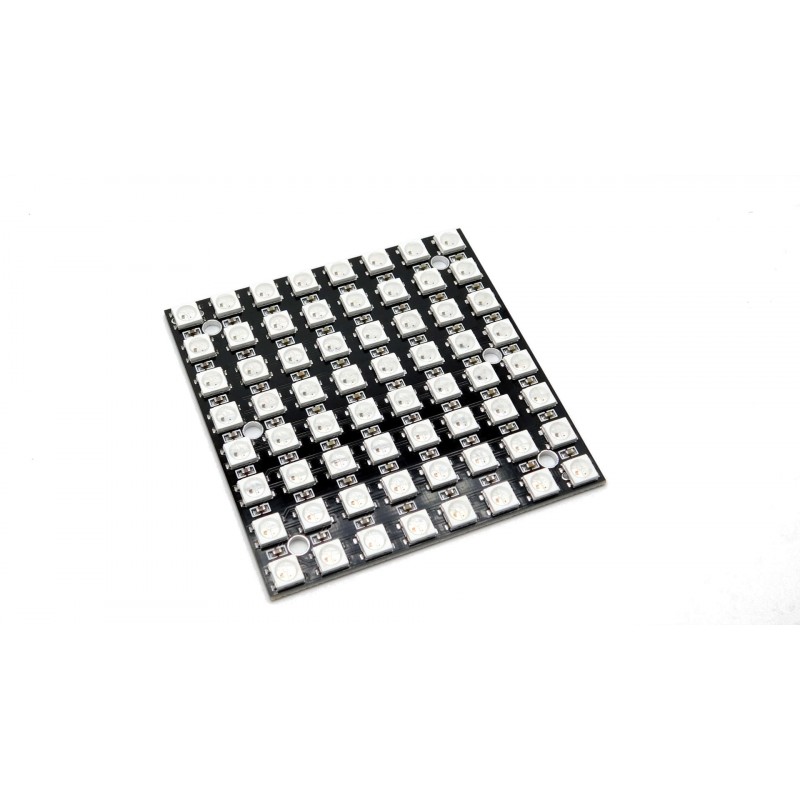

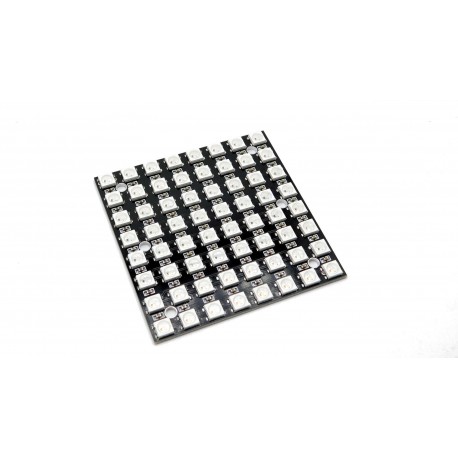

8x8 RGB LED matrica su valdikliu WS2812

1. Intelligent reverse polarity protection, power supply reverse polarity will not damage the IC.
2. IC control circuit and a power LED spot light utility.
3. Control circuit chip with RGB components in a package in 5050,
to form a complete external control pixels.
4. built-in signal shaping circuit, any one pixel after receiving the signal through the waveform
shaping and then output to ensure line waveform distortion will not accumulate.
5. Built-in power-on reset and brown-out reset circuit.
6. trichromatic color of each pixel can realize 256 highlighted, complete 16777216 colors of all
true color display, the scanning frequency is not less than 400Hz / s.
7. serial cascade interface, through a signal line to complete the receiving and decoding of data.
8. transfer transmission distance between any two points in less than 5 meters without any
additional circuitry.
9. When the refresh rate of 30 frames / sec, cascading number of not less than 1024 points.
10. data transmission speeds of up to 800Kbps.
11. The color of the light highly consistent, cost-effective.
