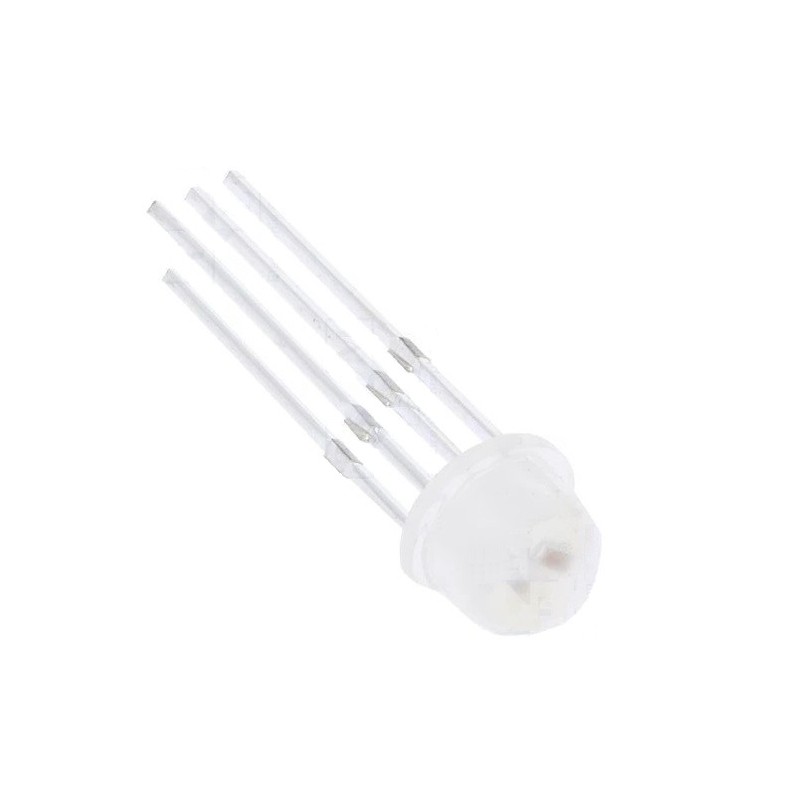

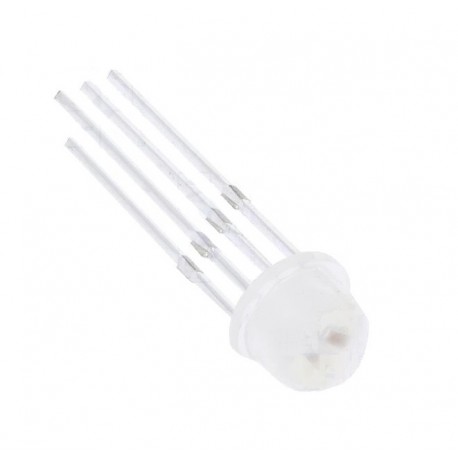

WS2812D-F5 RGB LED su valdikliu WS2812

d5713

Nauja prekė

Spalvoto LED modulis, kuris gali būti jungiamas su tokiais pat moduliais į bendrą 3 laidų magistralę. Kiekvienas LED įjungiamas/išjungiamas ir keičiama jo spalva per duomenų liniją. Sąsajai su WS2821 rekomenduojama naudoti Arduino FastLED biblioteką ar dedikuotus valdiklius.

Smulkiau

Prekių kiekis mūsų sandėlyje: 26

1,13€ su PVM


0,93€ be PVM

Charakteristikos

Suderinama su Arduino™ ir *duinoTaip
Nominali darbinė įtampa5V
Maitinimo įtampa3,7 - 5 V
Maksimali maitinimo įtampa5,3 V
Kontaktų kiekis6

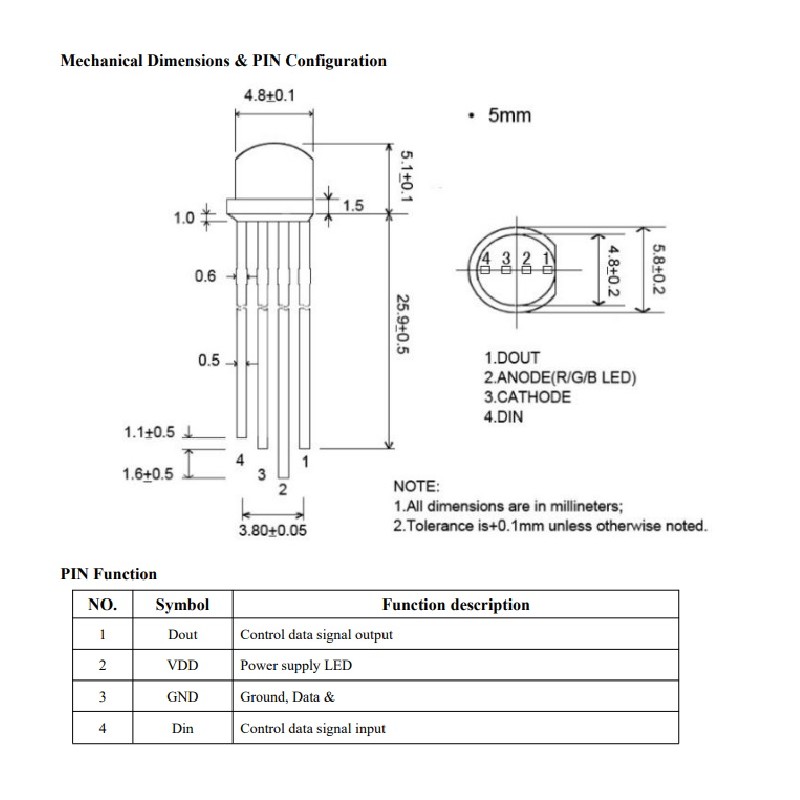

Matmenysd:4,8-5,8 mm / h: 6,1 mm
Komunikacijų sąsajosNuosekli sąsaja
SpalvosRGB
Naudojami mikrovaldiklio prievadai1 skaitmeninis I/O
Pagrindinės funkcijos grandynasWS2812D-F5-SH

Apie prekę

 The control circuit and the LED share the only power source.

 Control circuit and RGB chip are integrated in a package of 5*5mm round shape of Through Hole Device, to form a complete control of pixel point.

 Built-in signal reshaping circuit, after wave reshaping to the next driver, ensure wave-form distortion not accumulate.

 Built-in electric reset circuit and power lost reset circuit.

 Each pixel of the three primary color can achieve 256 brightness display, completed 16777216 color full color display, and scan frequency not less than 2KHz.

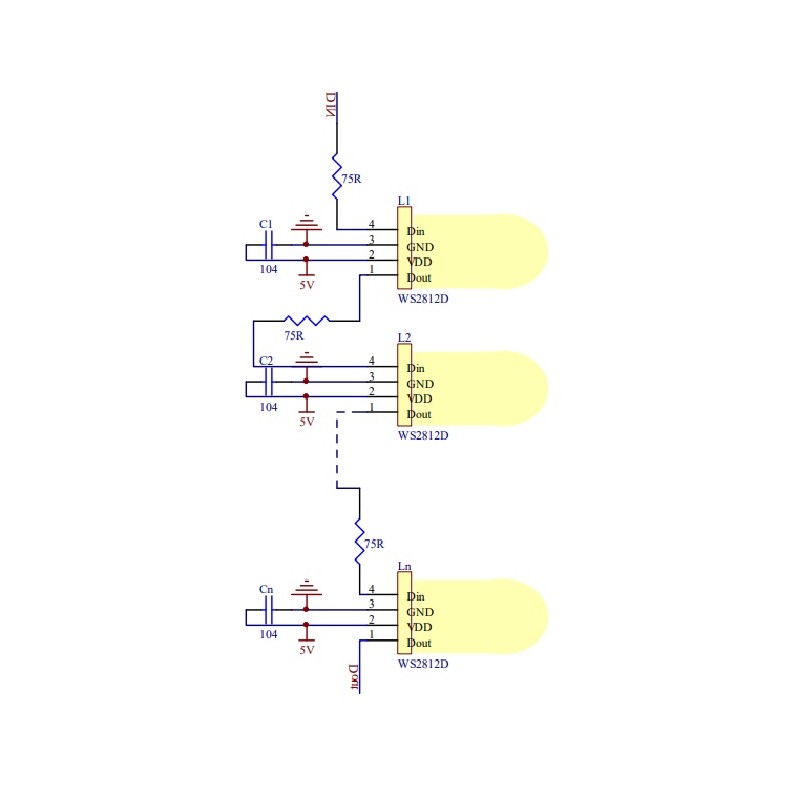

 Cascading port transmission signal by single line.

 Any two point the distance not more than 2M transmission signal without any increase circuit.

 When the refresh rate is 30fps, cascade number are not less than 2048 points.

 Send data at speeds of 800Kbps.

 The color of the light is highly consistent, cost-effective.

WS2812D-255-15mA is a intelligent control LED light source that the control circuit and RGB chip are integrated in a package of 5*5mm round shape of Through Hole Device. Its internal includes intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a 12V voltage programmable constant current control part, effectively ensuring the pixel point light color height consistent. The data transfer protocol use single NZR communication mode. After the pixel power-on reset, the DIN port receive data from controller, the first pixel collect initial 24bit data then sent to the internal data latch, the other data which reshaping by the internal signal reshaping amplification circuit sent to the next cascade pixel through the DO port. After transmission for each pixel, the signal to reduce 24bit. pixel adopt auto reshaping transmit technology, making the pixel cascade number is not limited the signal transmission, but only depends on the speed of signal transmission. LED with low driving voltage, environmental protection and energy saving, high brightness, scattering angle is large, good consistency, low power, long life and other advantages. The control chip integrated in LED above becoming more simple circuit, small volume, convenient installation.
