GL-C-615WL Gledopto šviesų valdiklis su WiFi (WS2812 moduliams 5V/12V/24V, WLED32, Mic)

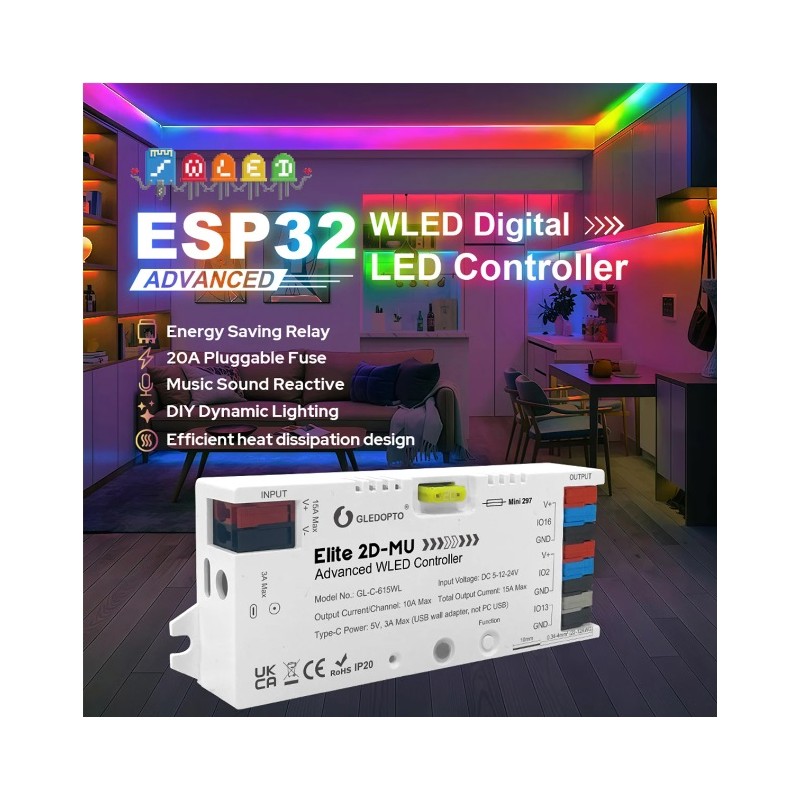

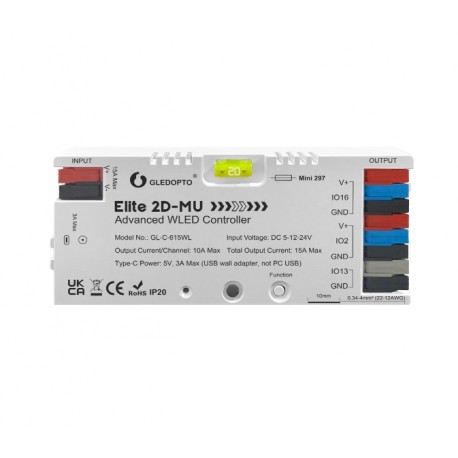

GLEDOPTO GL-C-615WL – Elite 2D-MU WLED Controller for Digital Stripes
The GLEDOPTO GL-C-615WL is an advanced WLED Controller based on ESP32, specifically designed for the operation of modern digital LED stripes. With support for numerous chipsets such as WS2812B, WS2815, SK6812, UCS2903B, and many others, it offers maximum flexibility for creative LED installations. Thanks to the UART/Type-C interface, the controller can be easily flashed and configured, and used as a 5V power supply.

Highlights of the GL-C-615WL WLED Controller
Compatible with WLED firmware – ready to use
Based on ESP32 with powerful WiFi integration
Control of up to two digital LED stripes simultaneously
UART/Type-C port for flashing and serial communication
Supports numerous LED chipsets (WS281x, SK6812, UCS series, etc.)

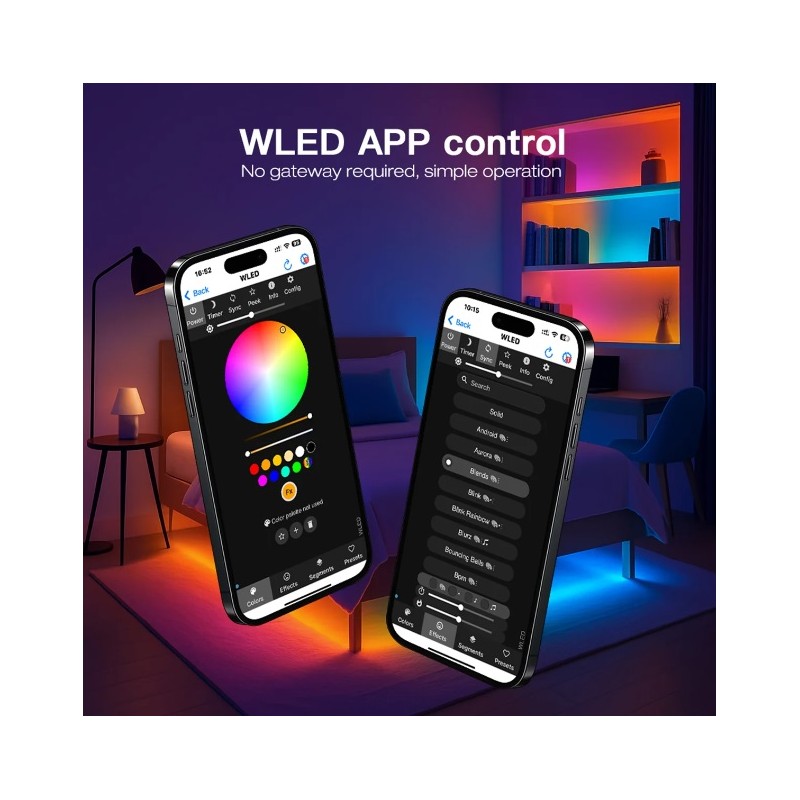

App control (Android & iOS) via WLED Native
Integrated microphone and relay function for audio-reactive effects and energy saving

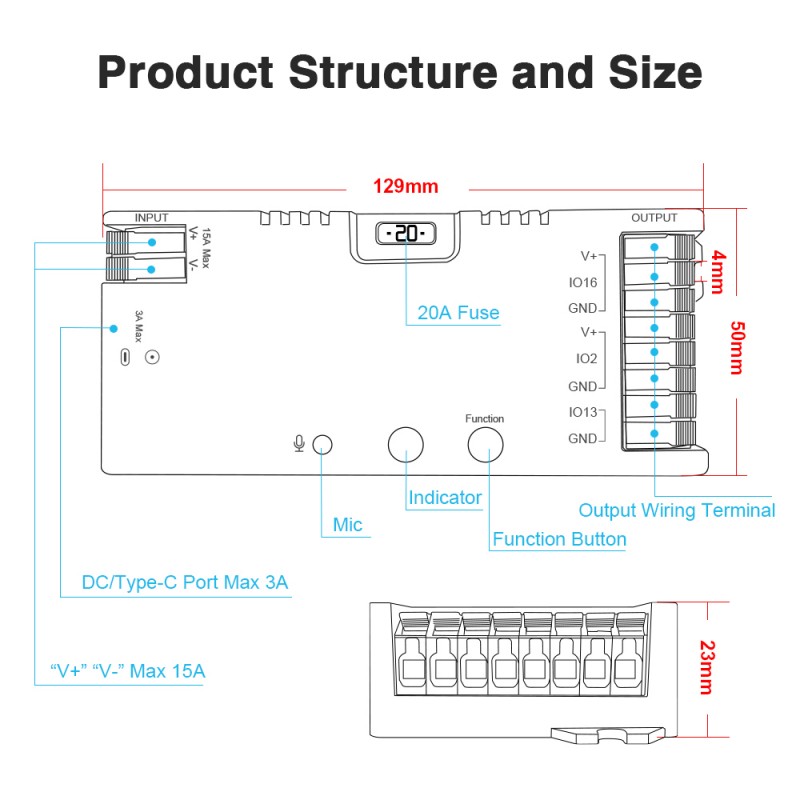

Technical Specifications

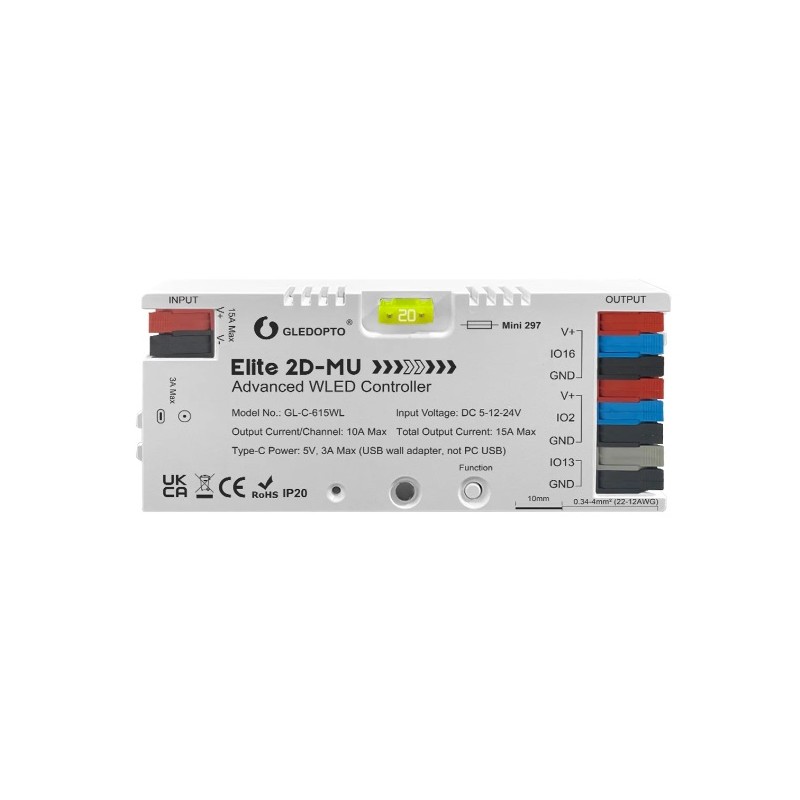

Model: GL-C-615WL (Elite 2D-MU)
Input Voltage: DC 5–12–24 V
Total Output Current: 15 A max.
Output Current per Channel: 10 A max.
Type-C Input: 5 V / 3 A max.
Temperature Range: -20 to +45 °C

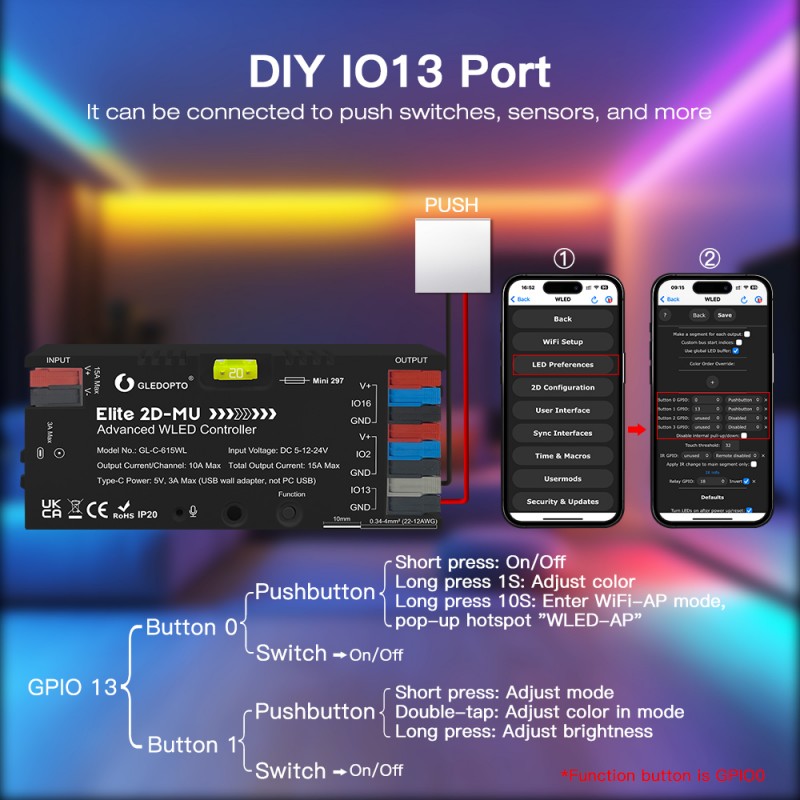

Interfaces: GPIO16, GPIO2, IO13 (DIY), UART/Type-C
Supported LED Types: WS2812B, WS2815, SK6812, UCS2903B, SM16703, etc.
Easy Installation & App Control

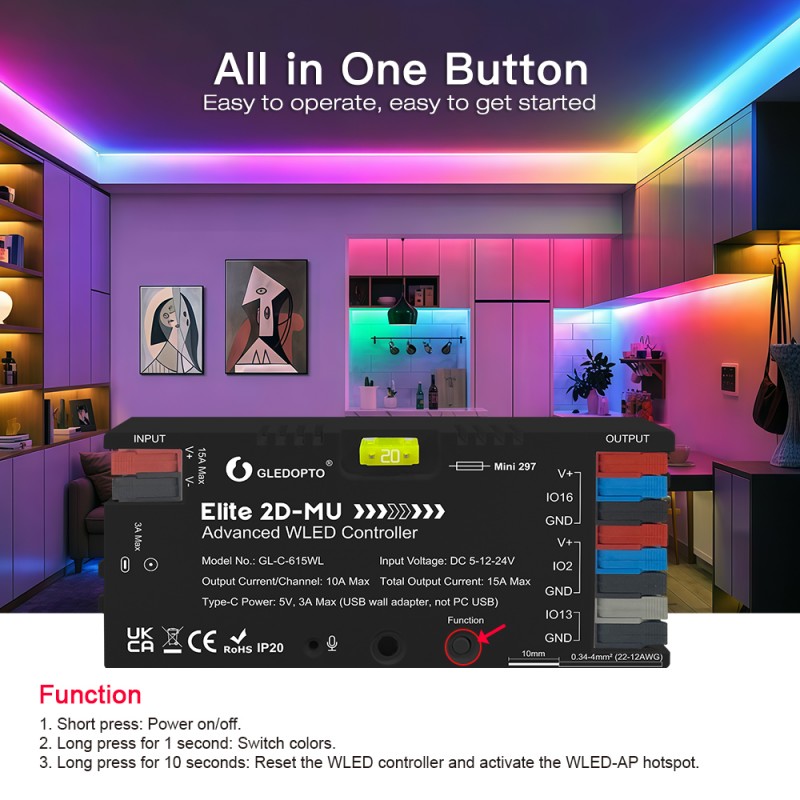

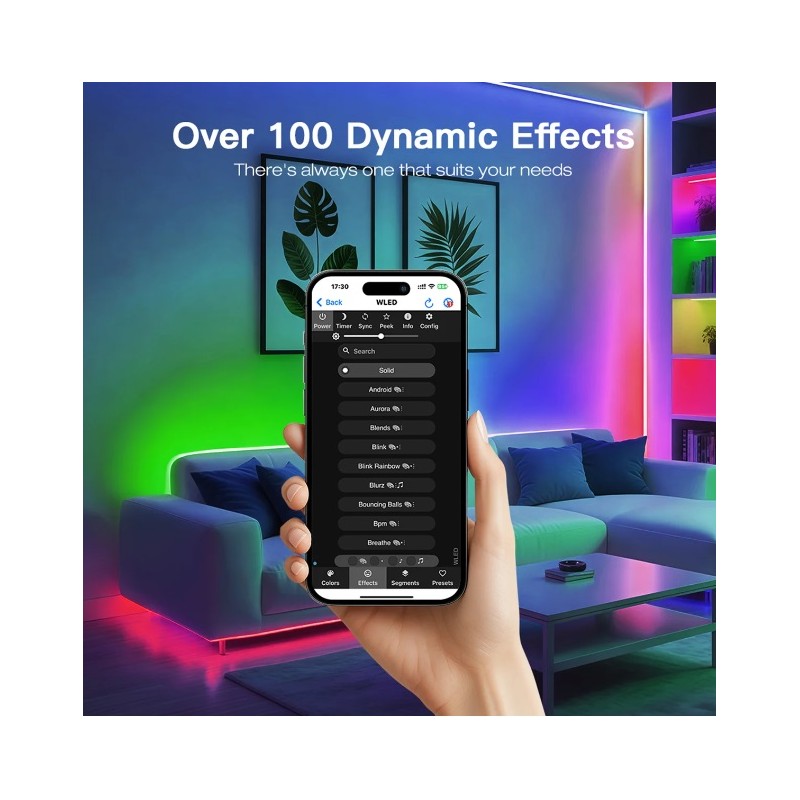

The setup of the GLEDOPTO WLED Controller is straightforward: After powering on, it creates its own WiFi network (“WLED-AP”) and can be directly configured via smartphone (password: wled1234). All effects, colors, and animations can be conveniently controlled through the free WLED Native App (iOS & Android).

Alternatively, control is also possible via the controller's web interface – perfect for users who want to integrate the controller into smart home systems.

Applications
The GLEDOPTO GL-C-615WL WLED Controller is ideal for:

Ambilight-like effects for TVs and monitors
RGBW or CCT lighting in living spaces
Audio-reactive LED installations thanks to the integrated microphone
Smart home integration via ESP32 & UART
Creative LED projects with digital stripes

With the GLEDOPTO GL-C-615WL, you get a versatile, powerful, and easy-to-configure WLED Controller for your digital LED stripes. Whether for creative lighting installations, smart home lighting, or music-synchronized effects – this ESP32 Controller with UART/Type-C offers everything you need for modern LED projects.
