GLEDOPTO GL-C-616WL – WLED Controller with ESP32, UART & Ethernet
The GLEDOPTO GL-C-616WL is a powerful WLED controller based on the ESP32. It supports both UART/Type-C and a network connection (Ethernet) for particularly stable integration into the smart home. With the ability to control up to two digital LED strips in parallel, it is ideal for creative lighting projects, smart lighting solutions, and audio-reactive effects.

Highlights of the GL-C-616WL
ESP32 controller with integrated WiFi and Ethernet function

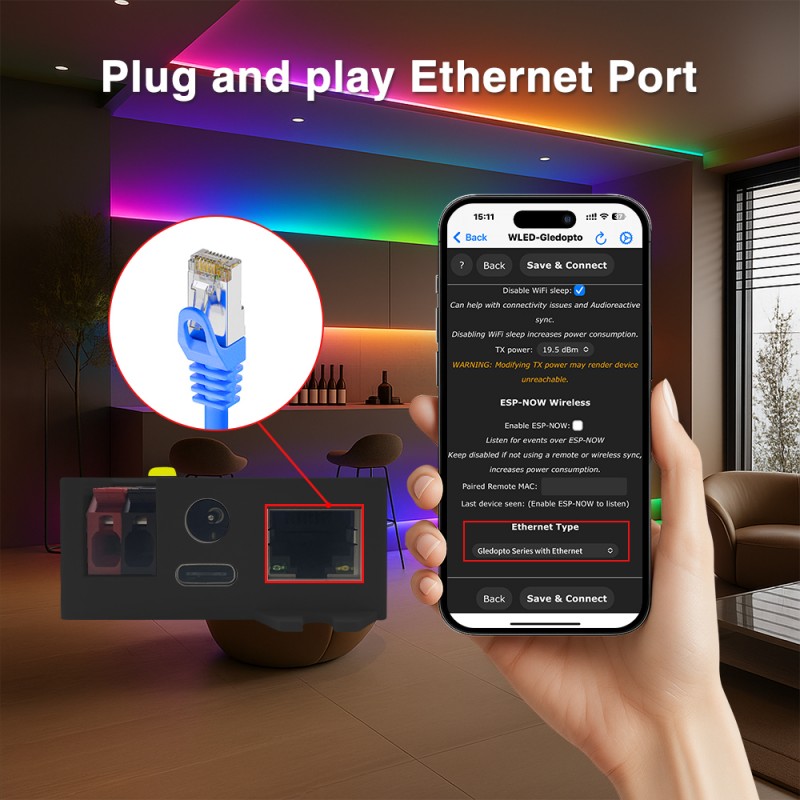

Network connection (Ethernet port) for stable wired connection
Support for up to two digital LED strips simultaneously

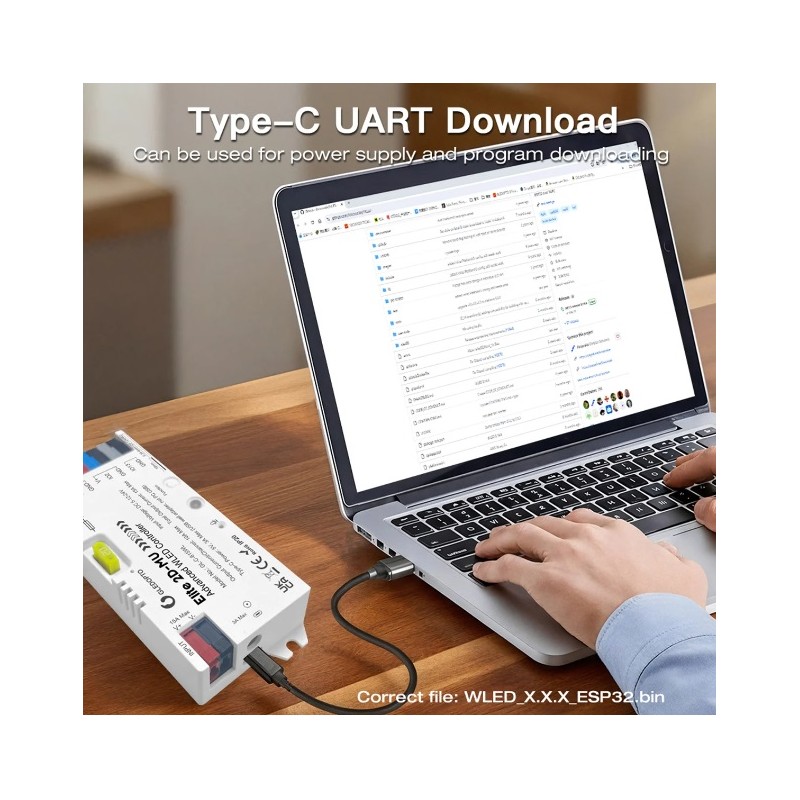

UART/Type-C interface for flash & configuration
Wide compatibility: WS2812B, WS2815, SK6812, UCS2903B, SM16703, and more
App control via the free WLED Native App (iOS & Android)

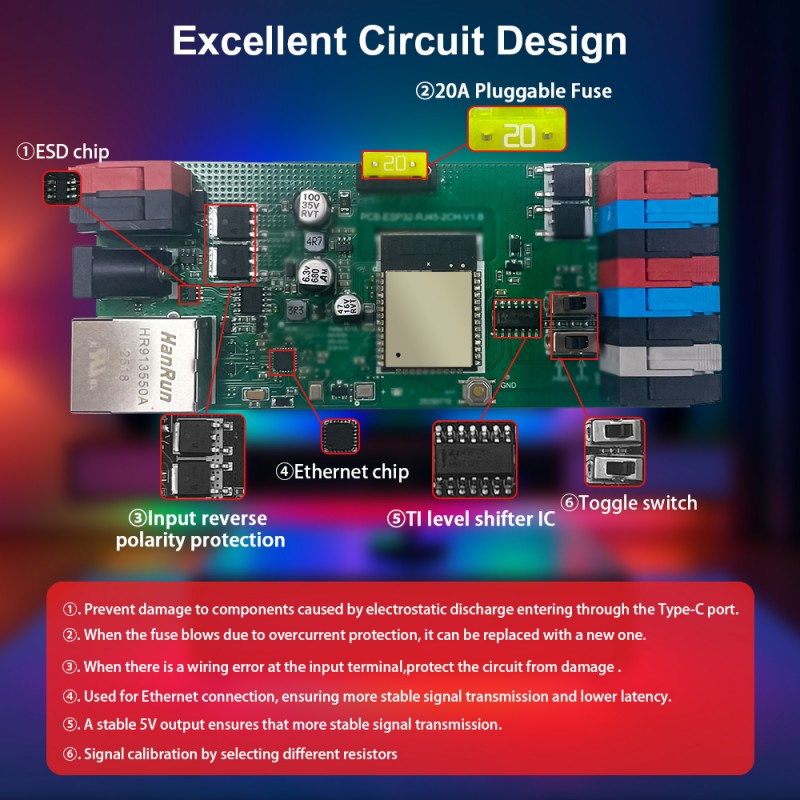

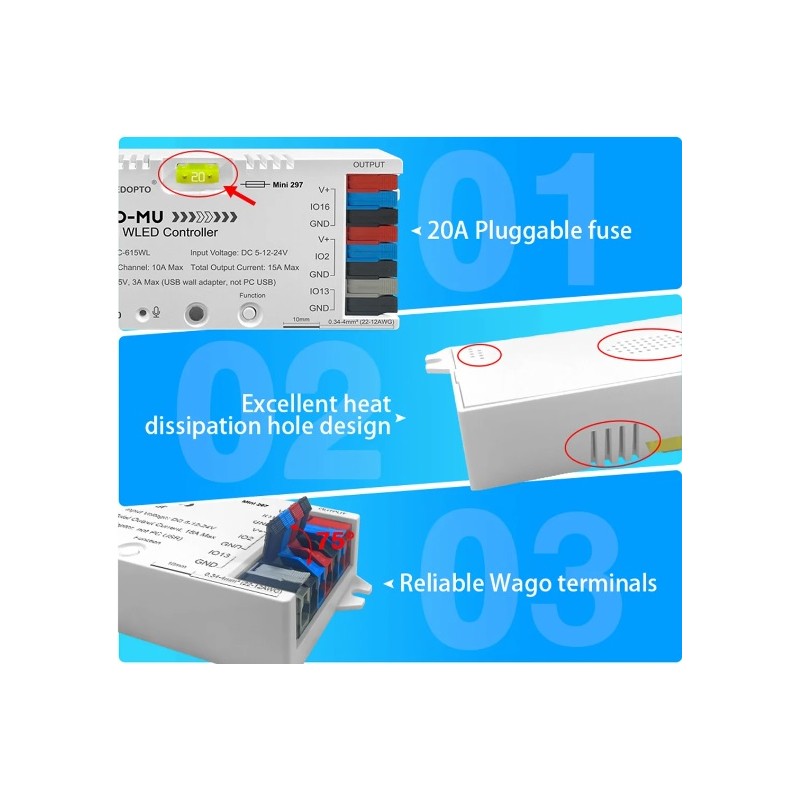

Integrated relay and fuse for more safety and energy efficiency
AudioReactive microphone function for music-synchronized effects
Technical Data

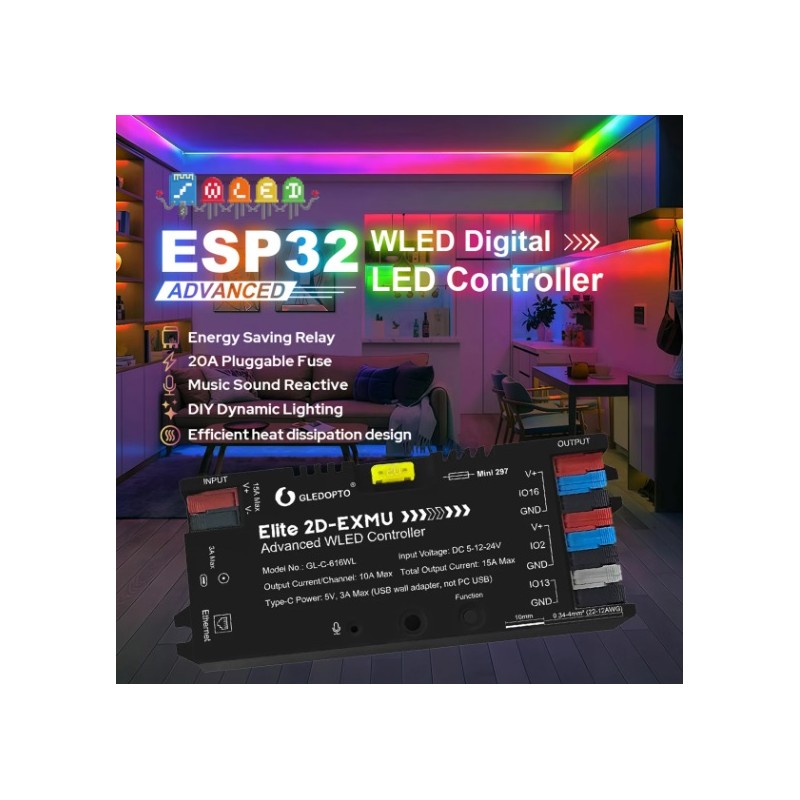

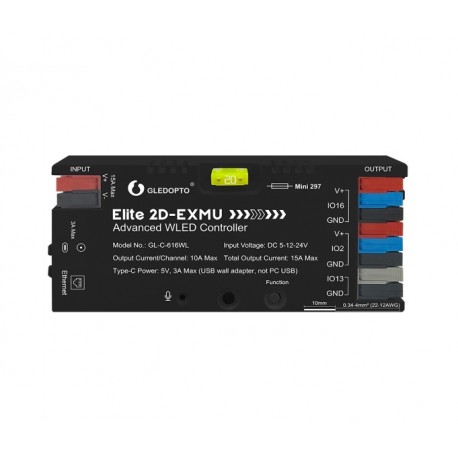

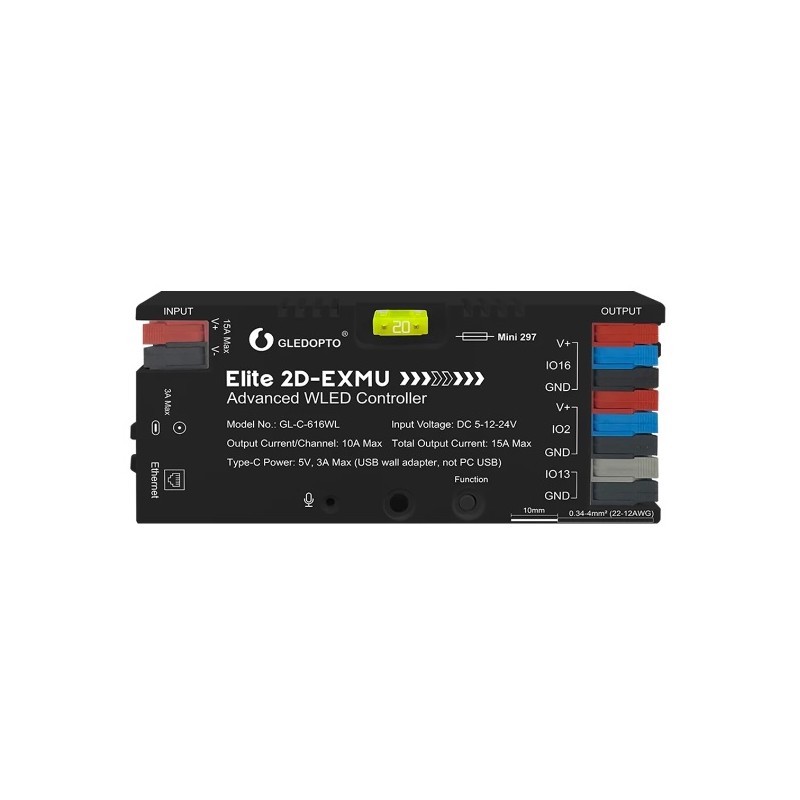

Model: GL-C-616WL (Elite 2D-EXMU)

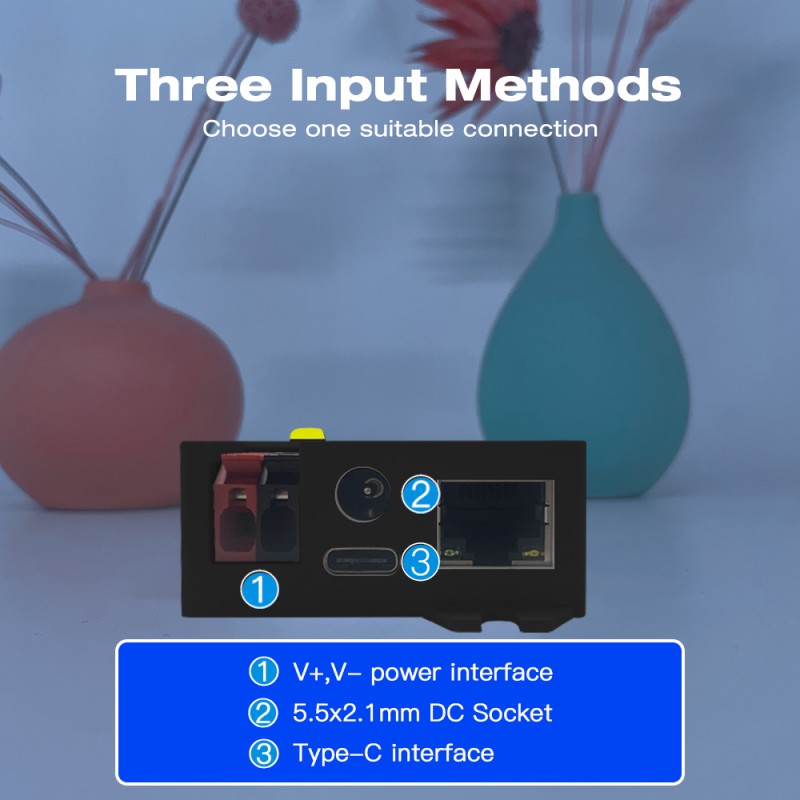

Input voltage: DC 5–12–24 V
Total output current: 15 A max.
Output current per channel: 10 A max.
Type-C input: 5 V / 3 A max.
Operating temperature: -20 to +45 °C
Supported chips: WS2812B, WS2815, SK6812, UCS2903B, SM16703, and more

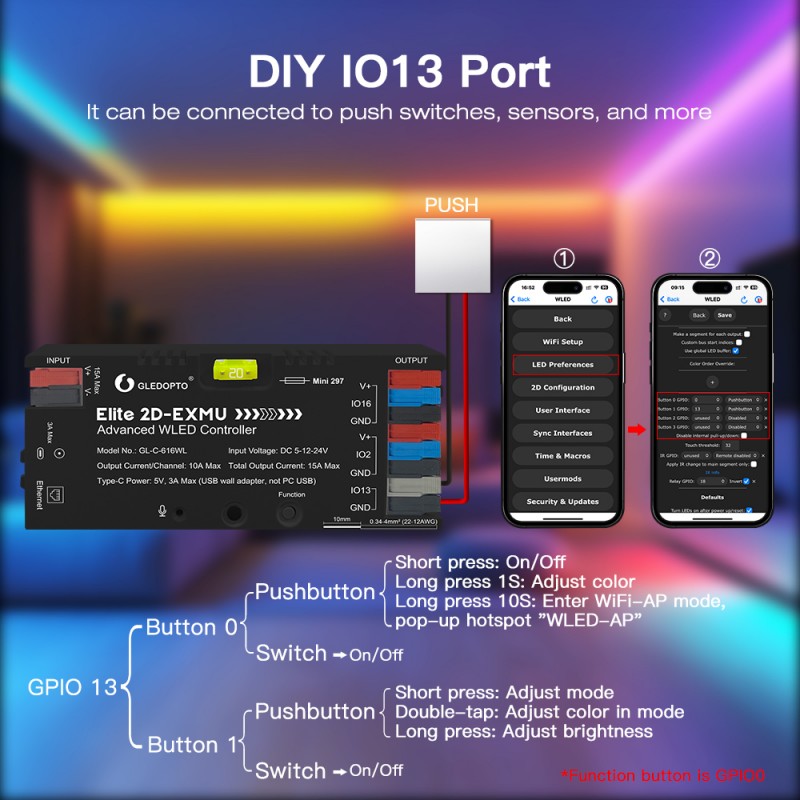

Interfaces: UART/Type-C, Ethernet port, GPIO16, GPIO2, IO13 (DIY)
Easy Setup & Control

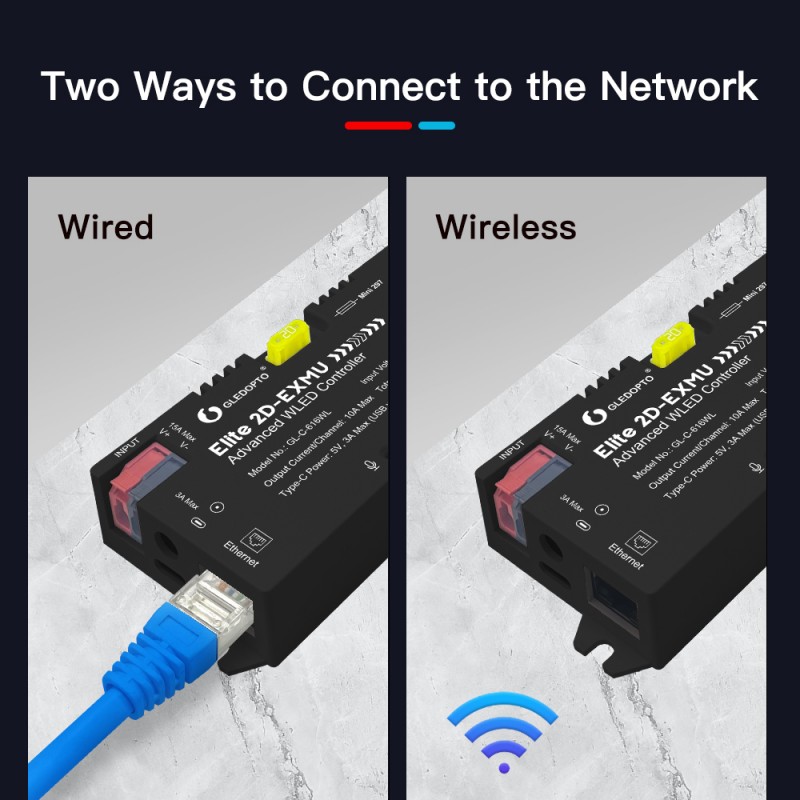

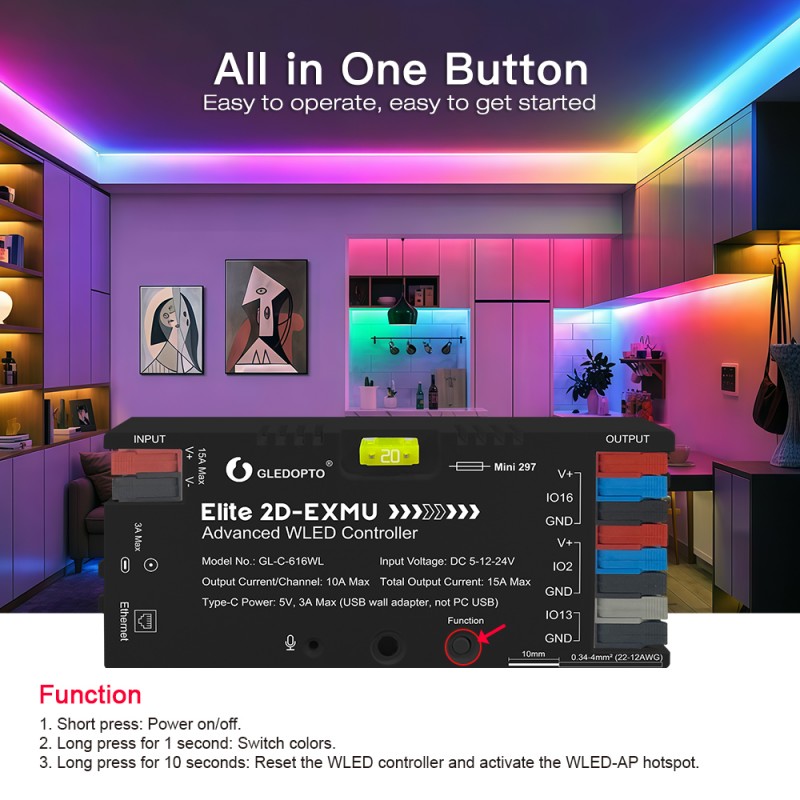

The setup can be done either via WiFi or Ethernet network connection. After switching on, the controller connects in access point mode (“WLED-AP”) with the smartphone (password: wled1234) and can be set up immediately in the WLED App. For maximum stability, simply use the integrated Ethernet port and connect the controller directly to the network via cable.

Via the WLED web interface, LED strips can be configured, relay options activated, or AudioReactive functions set – flexibly according to the project's requirements.

Application Areas
Living room lighting with digital strips and WLED effects
Ambilight-like setups for TV and monitor
Music-synchronized light shows thanks to microphone integration
Stable smart home integration via network connection (Ethernet)
Creative DIY projects with ESP32 & UART

With the GLEDOPTO GL-C-616WL, you get a versatile and future-proof WLED controller that can be integrated both wirelessly via WiFi and stably via Ethernet network connection. Thanks to ESP32, UART interface, and wide LED compatibility, it is the perfect choice for ambitious LED projects, smart home integrations, and creative lighting installations.
