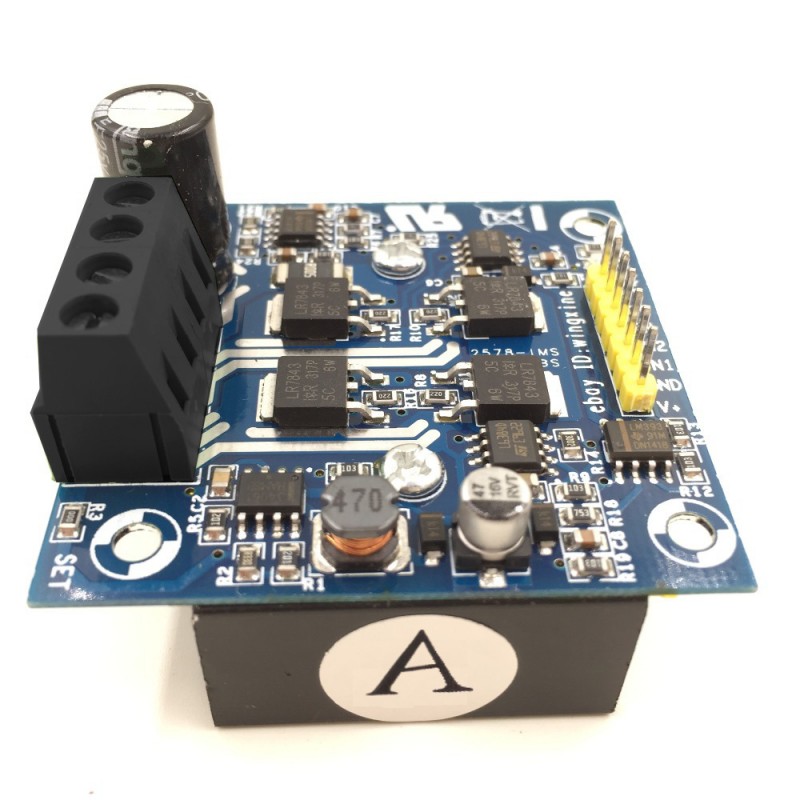

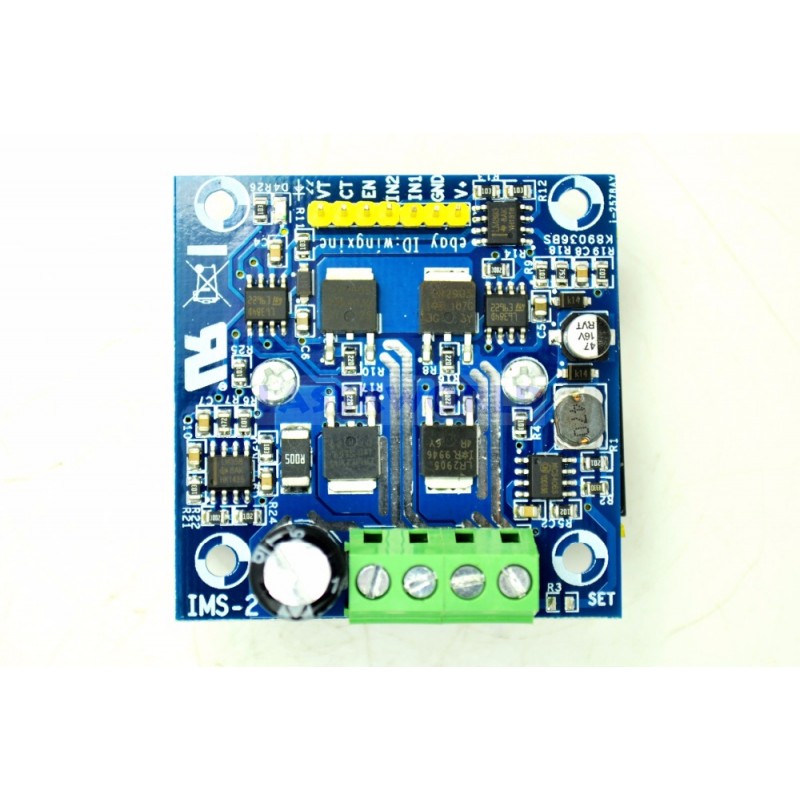

Variklių valdymo modulis IMS-2A (1x H-bridge) su MOSFET

SPECIFIKACIJOS:

Drive can work at 0%-98% (not 100%) of the PWM duty cycle, because the drive is NMOS circuit! is 100% PWM long time operation can lead to drive damage!

Rated voltage: 3 V-14.6 V

R1 short circuit, VCC and B + short circuit. VCC output voltage and drive the input voltage.

R1 open circuit, VCC and B + disconnect.   VCC input voltage 3-12 V.

Rated current: 30 A

Current peak: 70 A

Switching frequency: 1 K to 200 kHz

Dimensions: 5.0 cm (long) * 5.0 cm (wide) * 3.1 cm (high)

 V +                Power Input +

GND             Power Input -

EN                 Driver Enable, high enable, low off

RPWM          Forward PWM input, high active
LPWM          Reverse PWM input, active high
CT                 Current signal output,analog signal
VT                 Voltage signal output, analog signal
