Variklių valdymo modulis su DRV8833 (2x H-bridge su stabdymu)

DRV8833:
Features:

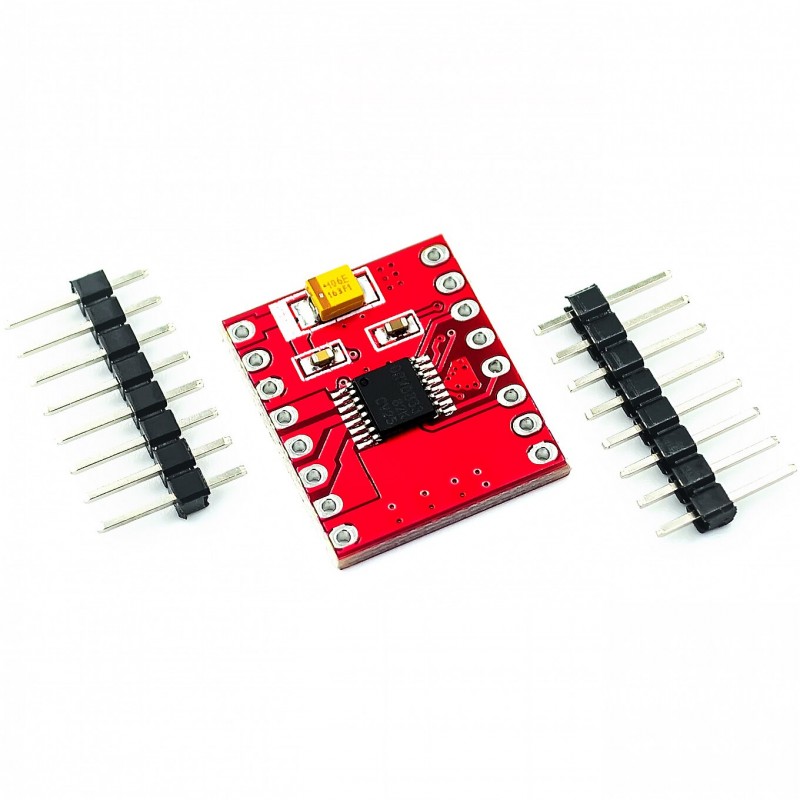

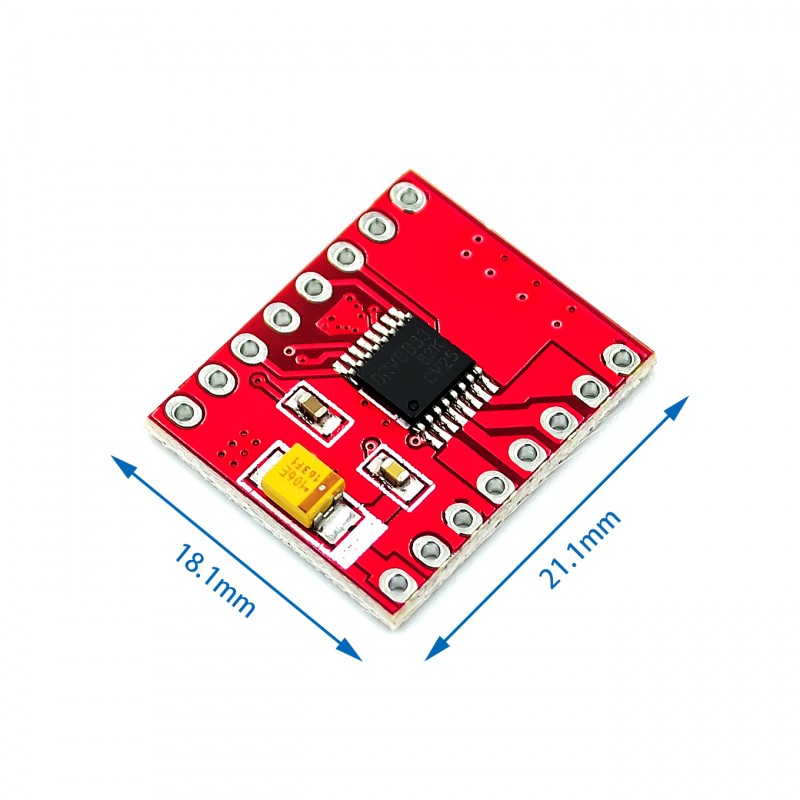

Size: 18 * 21mm
Input voltage: 2.7 V – 10.8 V
Output current of single H-bridge: 1.5A, which can drive two DC deceleration motors.
Built in over-current protection, short-circuit protection, under voltage locking and over temperature protection. With low power sleep mode.
Application: it can drive DC motor under 1.5A and 4-wire stepping motor.

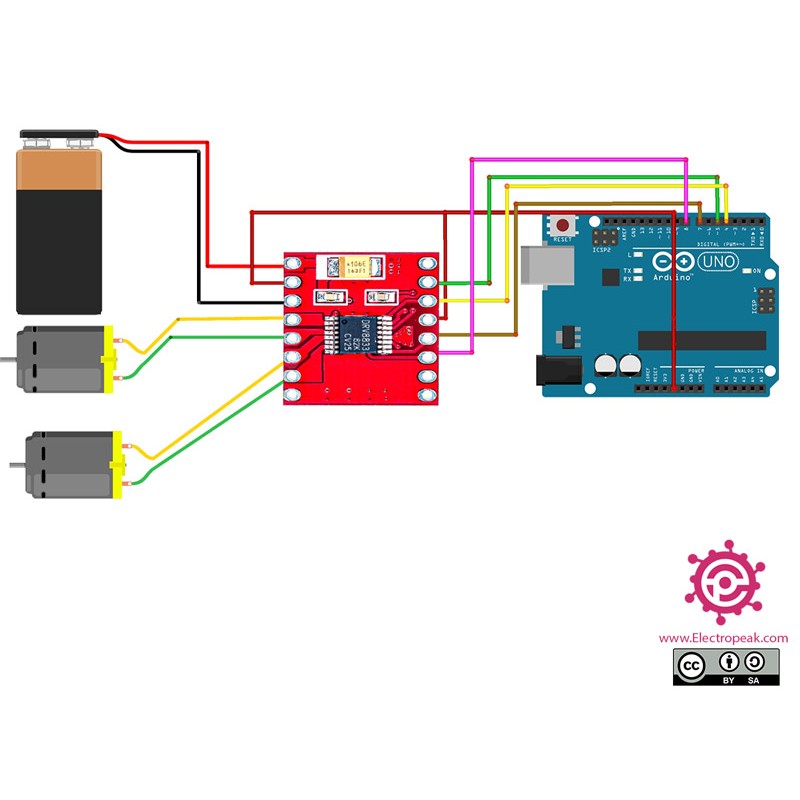

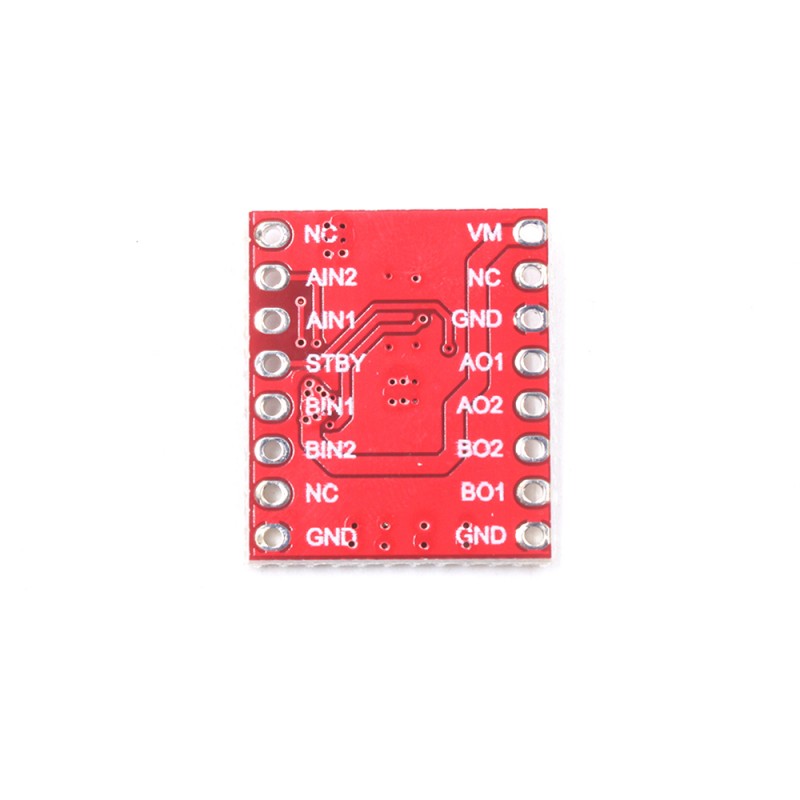

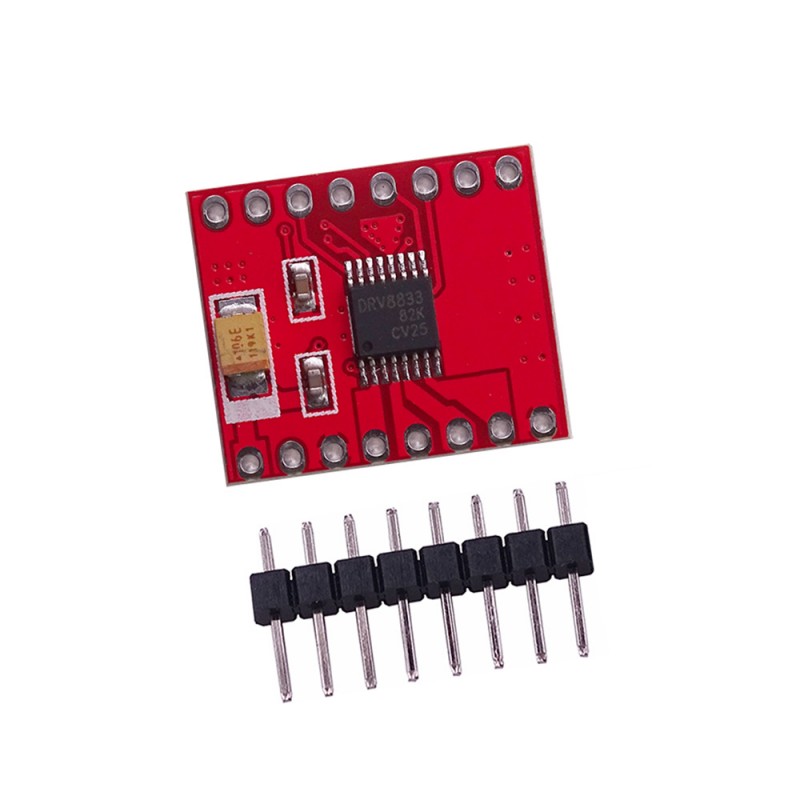

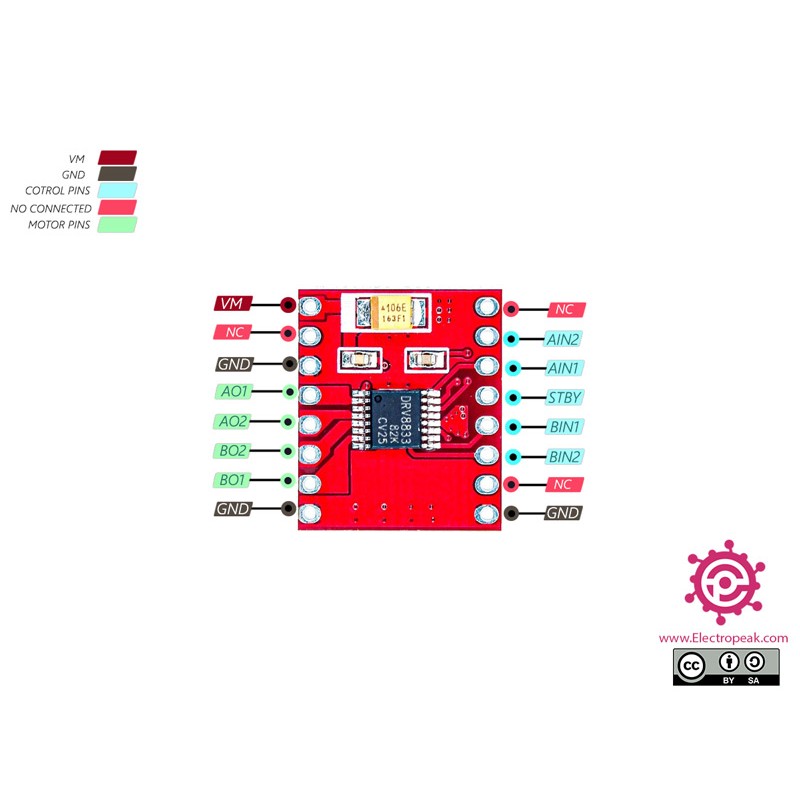

Pin description:
Ani1: logic input control port of AO1, level 0-5V.
Ain2: logic input control port of AO2, level 0-5V.
Bni1: logic input control port of Bo1, level 0-5V.
BIN2: logic input control port of Bo2, level 0-5V.
AO1 and AO2 are one H-bridge output ports, which are connected to two pins of a DC motor.
Bo1 and Bo2 are two H-bridge output ports, which are connected to two feet of another external direct motor.
GND: ground.
VM: chip and motor power supply pin, voltage range 2.7 V – 10.8 v.
STBY: grounded or suspended chip does not work, no output, connected to 5V; level 0-5V.
NC: empty feet
