Variklių valdymo modulis su TB6612FNG (2x H-bridge su stabdymu)

d0439

Nauja prekė

Šis Arduino modulis yra skirtas Arduino implementacijoms, kur reikalinga ne tik valdyti didesnės galios elektroniką, bet ir valdyti srovės kryptį (pvz. variklio sukimosi kryptį). Gali valdyti 2 DC variklius.

Smulkiau

Prekių kiekis mūsų sandėlyje: 205

8,47€ su PVM


7,00€ be PVM

Charakteristikos

Suderinama su Arduino™ ir *duinoTaip
Kanalų skaičius2
Maksimali valdoma srovė1,2A
Maksimali valdoma įtampa15 VDC
Nominali darbinė įtampa5V
Maitinimo įtampa3-5V (DC)
Maksimali maitinimo įtampa5,5V
Jungties žingsnis2,54mm
Jungties tipasMale (vyr.)
Kontaktų kiekis16
Maksimali srovė3,2A
Naudojami mikrovaldiklio prievadaiiki 7 skaitmeninių I/O
Pagrindinės funkcijos grandynasTB6612FNG

Apie prekę

The TB6612FNG motor driver can control up to two DC motors at a constant current of 1.2A (3.2A peak). Two input signals (IN1 and IN2) can be used to control the motor in one of four function modes - CW, CCW, short-brake, and stop. The two motor outputs (A and B) can be separately controlled, the speed of each motor is controlled via a PWM input signal with a frequency up to 100kHz. The STBY pin should be pulled high to take the motor out of standby mode.

Logic supply voltage (VCC) can be in the range of 2.7-5.5VDC, while the motor supply (VM) is limited to a maximum voltage of 15VDC. The output current is rated up to 1.2A per channel (or up to 3.2A for a short, single pulse).

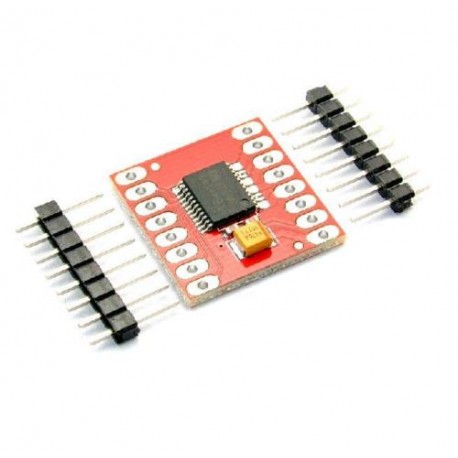

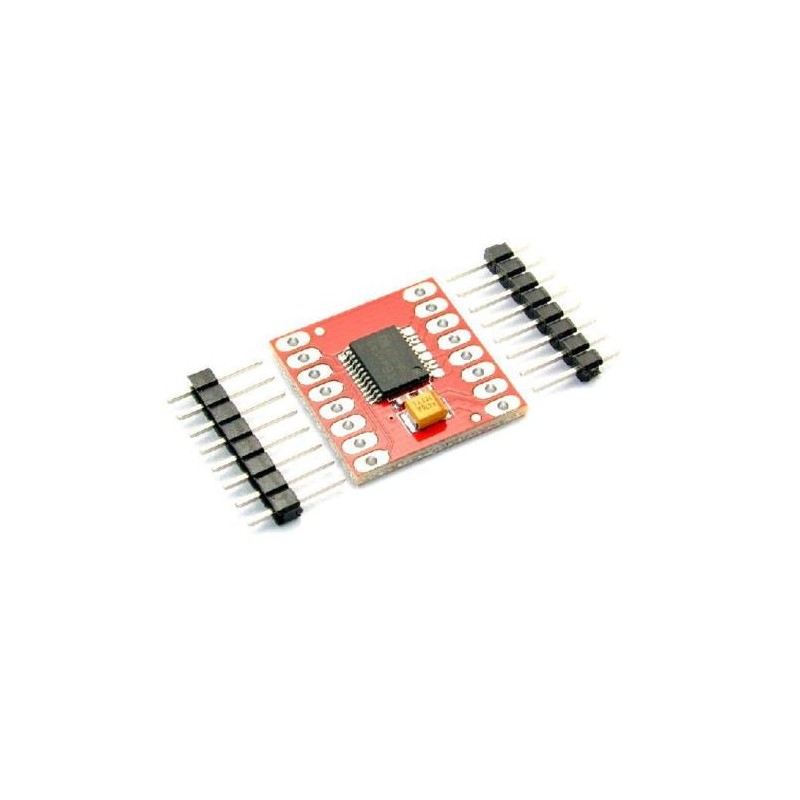

Board comes with all components installed as shown. Decoupling capacitors are included on both supply lines. All pins of the TB6612FNG are broken out to two 0.1" pitch headers; the pins are arranged such that input pins are on one side and output pins are on the other.

Features:

  • Power supply voltage: VM=15V max, VCC=2.7-5.5V
  • Output current: Iout=1.2A(average) / 3.2A (peak)
  • Standby control to save power
  • CW/CCW/short brake/stop motor control modes
  • Built-in thermal shutdown circuit and low voltage detecting circuit
  • All pins of the TB6612FNG broken out to 0.1" spaced pins
  • Filtering capacitors on both supply lines

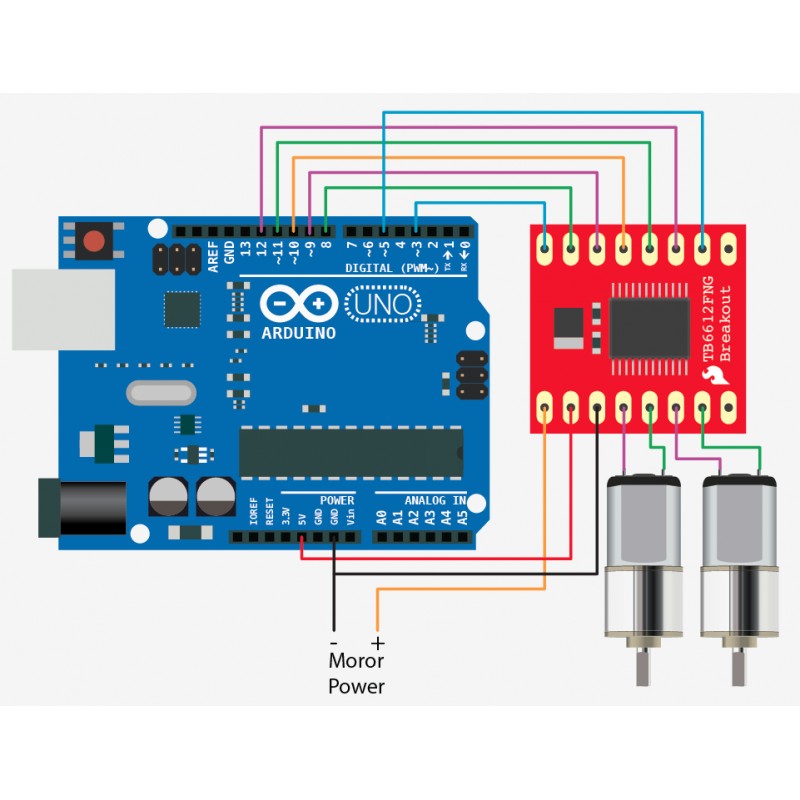

//motor A connected between A01 and A02
//motor B connected between B01 and B02

int STBY = 10; //standby

//Motor A
int PWMA = 3; //Speed control
int AIN1 = 9; //Direction
int AIN2 = 8; //Direction

//Motor B
int PWMB = 5; //Speed control
int BIN1 = 11; //Direction
int BIN2 = 12; //Direction

void setup(){
  pinMode(STBY, OUTPUT);

  pinMode(PWMA, OUTPUT);
  pinMode(AIN1, OUTPUT);
  pinMode(AIN2, OUTPUT);

  pinMode(PWMB, OUTPUT);
  pinMode(BIN1, OUTPUT);
  pinMode(BIN2, OUTPUT);
}

void loop(){
  move(1, 255, 1); //motor 1, full speed, left
  move(2, 255, 1); //motor 2, full speed, left

  delay(1000); //go for 1 second
  stop(); //stop
  delay(250); //hold for 250ms until move again

  move(1, 128, 0); //motor 1, half speed, right
  move(2, 128, 0); //motor 2, half speed, right

  delay(1000);
  stop();
  delay(250);
}


void move(int motor, int speed, int direction){
//Move specific motor at speed and direction
//motor: 0 for B 1 for A
//speed: 0 is off, and 255 is full speed
//direction: 0 clockwise, 1 counter-clockwise

  digitalWrite(STBY, HIGH); //disable standby

  boolean inPin1 = LOW;
  boolean inPin2 = HIGH;

  if(direction == 1){
    inPin1 = HIGH;
    inPin2 = LOW;
  }

  if(motor == 1){
    digitalWrite(AIN1, inPin1);
    digitalWrite(AIN2, inPin2);
    analogWrite(PWMA, speed);
  }else{
    digitalWrite(BIN1, inPin1);
    digitalWrite(BIN2, inPin2);
    analogWrite(PWMB, speed);
  }
}

void stop(){
//enable standby
  digitalWrite(STBY, LOW);
}
