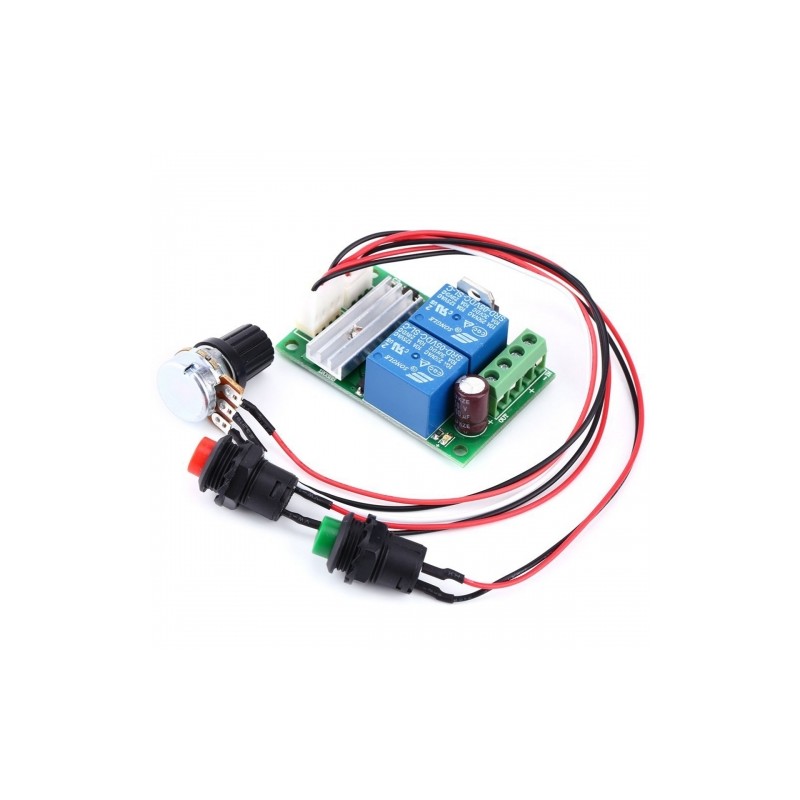

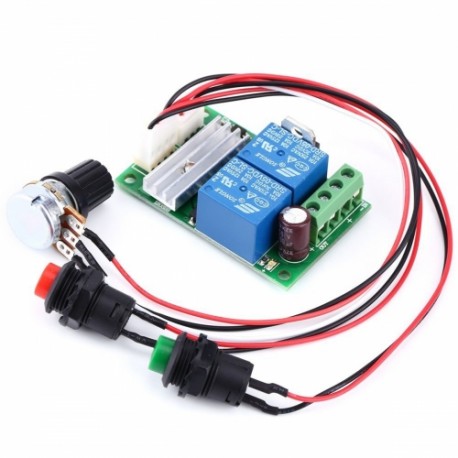

Dvikryptis variklio greičio reguliatorius 6-24V 3A

Controller enable to provide a continuous current of 3A to your DC motor or other DC load. Control the forward or reverse direction and the stop of DC motor by button switch. Press the red button, the motor reverses rotates; and release the button, the motor stops. Press the green button, the motor clockwise rotates; and release the button, the motor stops.

Description:

Material: Circuit Board+Electronic Components
Color: Multi Colors
Input supply voltage: 6V-24VDC
The maximum continuous output current: 3A
Duty Cycle adjustable: 0%-100%
Wire Length: 20cm/7.87"(appr.)
Size: (L)X(W)X(H) 57X37X21mm/2.24"X1.46"X0.83"(appr.)
Features:

Enable to provide a continuous current of 3A to your DC motor or other DC load.
Control the forward or reverse direction and the stop of DC motor by button switch.
Press the red button, the motor reverses rotates; and release the button, the motor stops.
Press the green button, the motor clockwise rotates; and release the button, the motor stops.
Operating instruction:

Before you attempting to wire the controller, make sure power is off.
1. Connect wires refer to the "wiring diagram".
2. Turn on the power, and adjust the potentiometer.
3. The LED indicates the power up and the speed of motor.
4. Control the forward or reverse direction of DC motor by button switches.
Note:

Do not reverse positive and negative power loads. This will damage the controller.
