d1207
Nauja prekė

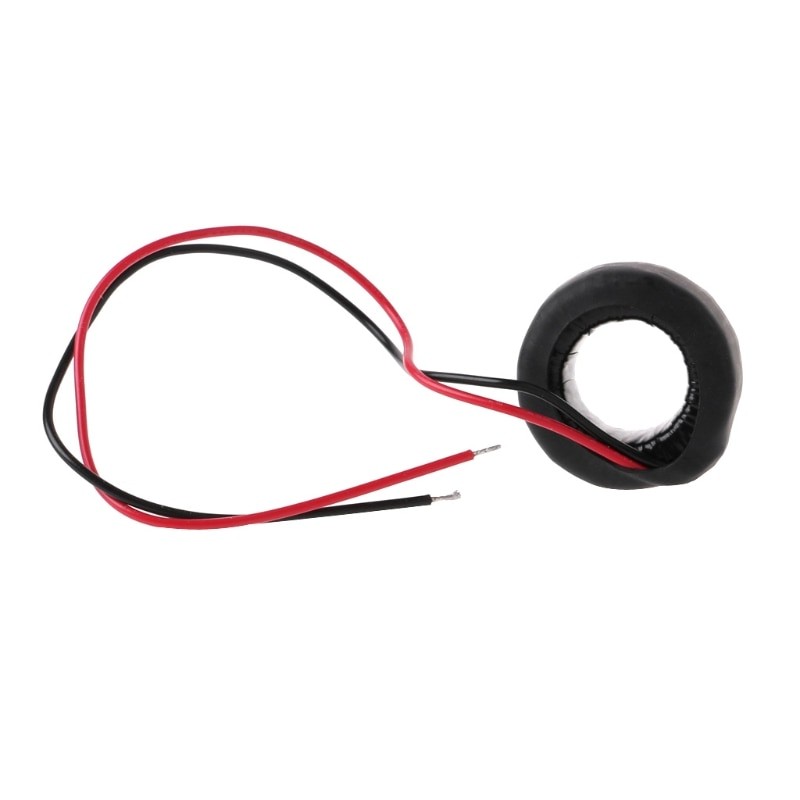

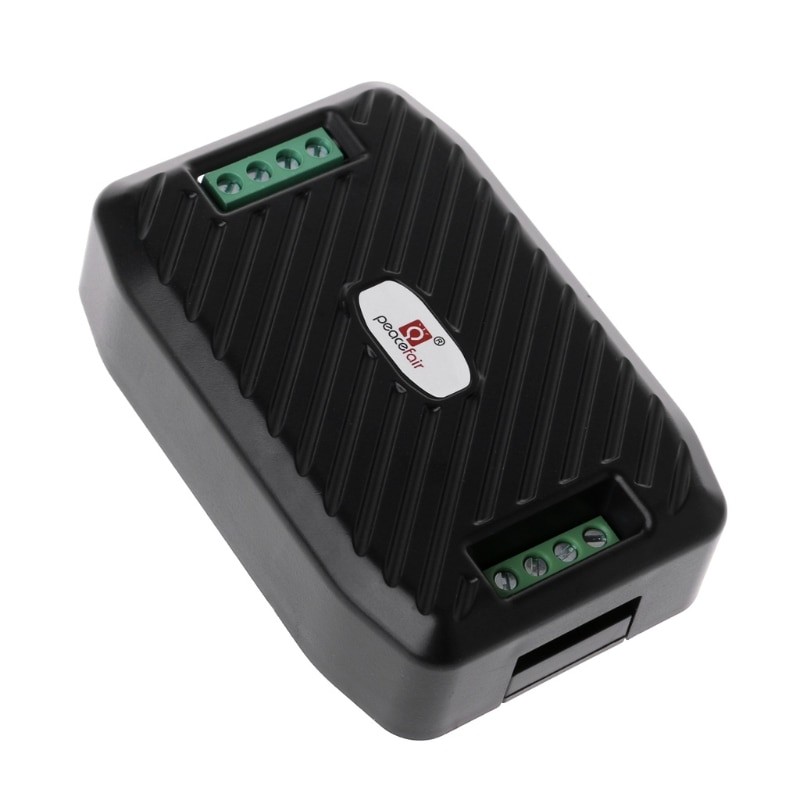

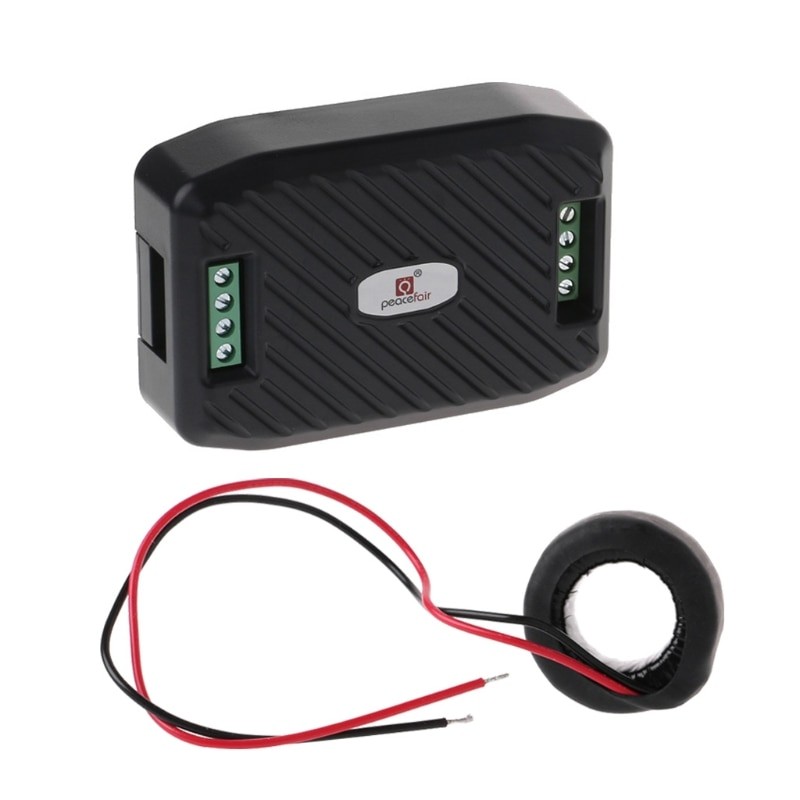

Tinka 230V AC maitinimo tinklui. Vienfazis. matuoja srovę iki 100A. Duomenys (Sorvė, įtampa, dažnis, sunaudotas kiekis kWh, cos fi (power factor)) nuskaitomi per RS485 sąsają Modbus prototkolu. Taip pat turi viršytos srovės aliarmą. Komplekte: matuoklis, srovės transformatorius.
Prekių kiekis mūsų sandėlyje: 4
Dėmesio: Paskutinės prekės!
Pasiekiama:

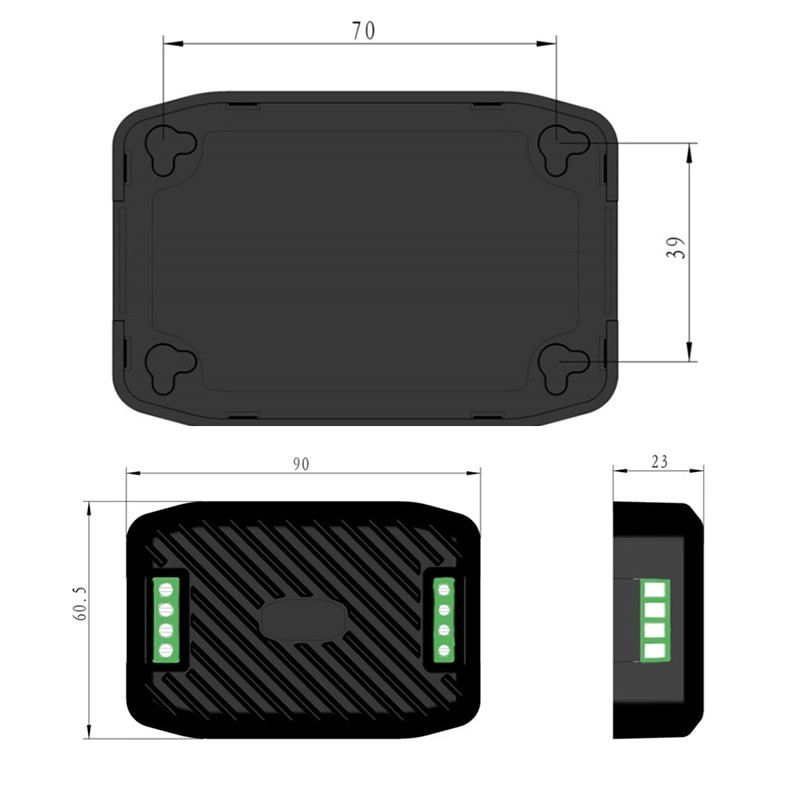

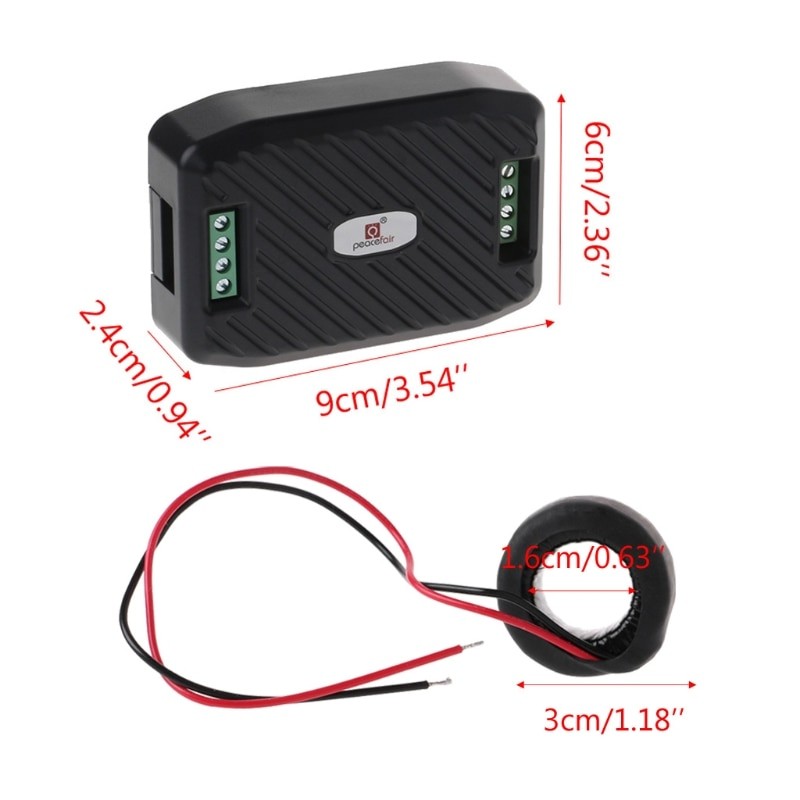

Matmenys | 90 x 60 x 22 mm (CT: d30 x 18 mm Laido d: 17mm) |
Jautrumas | 0,1V; 0,001A; 0,1W; pf:0.01; 0,1Hz; 1Wh; Tikslumas: 0,5% |
Matavimo ribos | 80 - 260 VDC; 0 - 100A AC; 0-23kWh; 45-65Hz; 0-9999,99kWh |
Description:
AC single phase with RS485 serial port multi-function monitoring box; can measure voltage, current, power, power, frequency, power factor, maximum 100A! It can display six measurement parameters on the computer when communicate through the software; it can also communicate with the buyer's custom micro controller software!
The high accuracy, better compatibility will make it use widely.

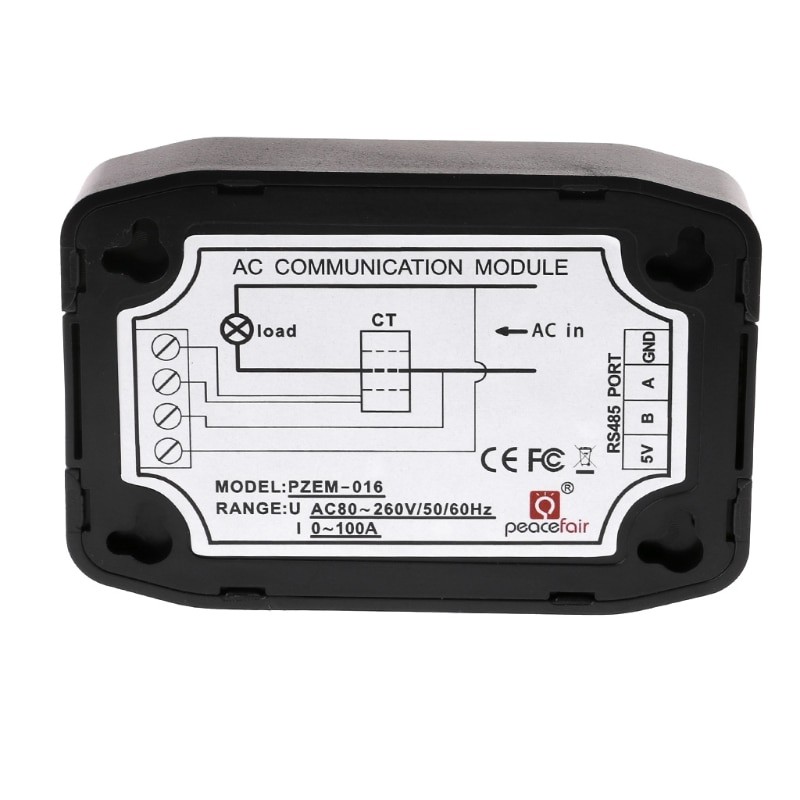

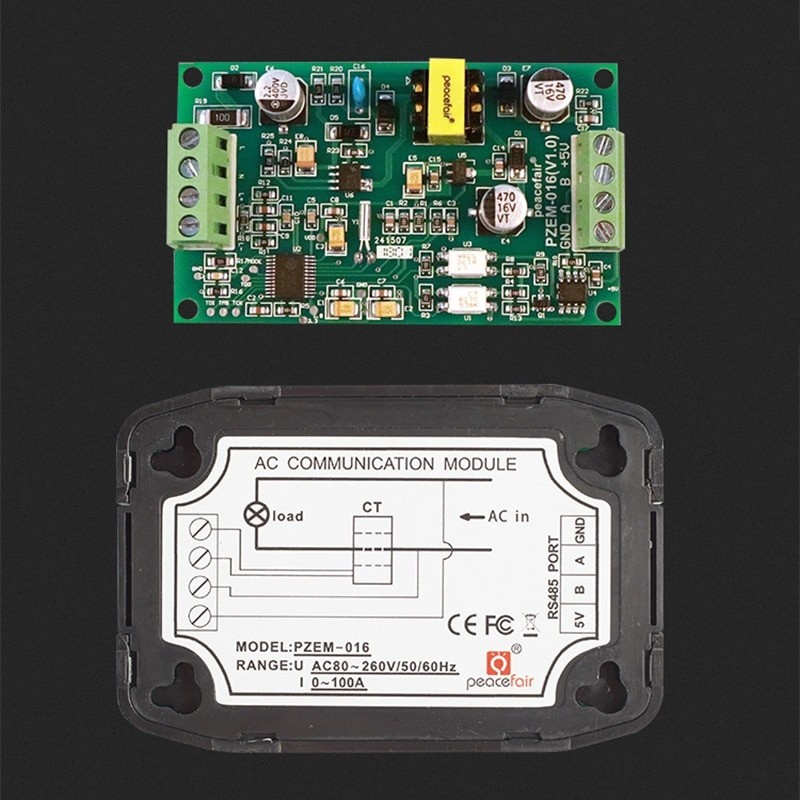

PZEM-016: Measuring Range 100A (external transformer) With Coil CT
Specifications:
Voltage:
Measuring range:80~260V
Resolution: 0.1V
Measurement accuracy: 0.5%
Current
Measuring range: 0~100A
Starting measure current: 0.02A
Resolution: 0.001A
Measurement accuracy: 0.5%
Active power
Measuring range: 0~23kW
Starting measure power: 0.4W
Resolution: 0.1W
Display format:
When the data is <1000W, it display one decimal, such as: 999.9W
When the data is ≥1000W, it display only integer, such as: 1000W
Measurement accuracy: 0.5%
Power factor
Measuring range: 0.00~1.00
Resolution: 0.01
Measurement accuracy: 1%
Frequency
Measuring range: 45Hz~65Hz
Resolution: 0.1Hz
Measurement accuracy: 0.5%
Active energy
Measuring range: 0~9999.99kWh
Resolution: 1Wh
Measurement accuracy: 0.5%
Display format:
When the data is <10kWh, the display unit is Wh(1kWh=1000Wh), such as: 9999Wh
When the data is ≥10kWh, the display unit is kWh, such as: 9999.99kWh
Reset energy: use software to reset.
Over power alarm: Active power threshold can be set, when the measured active power exceeds the threshold, it can alarm

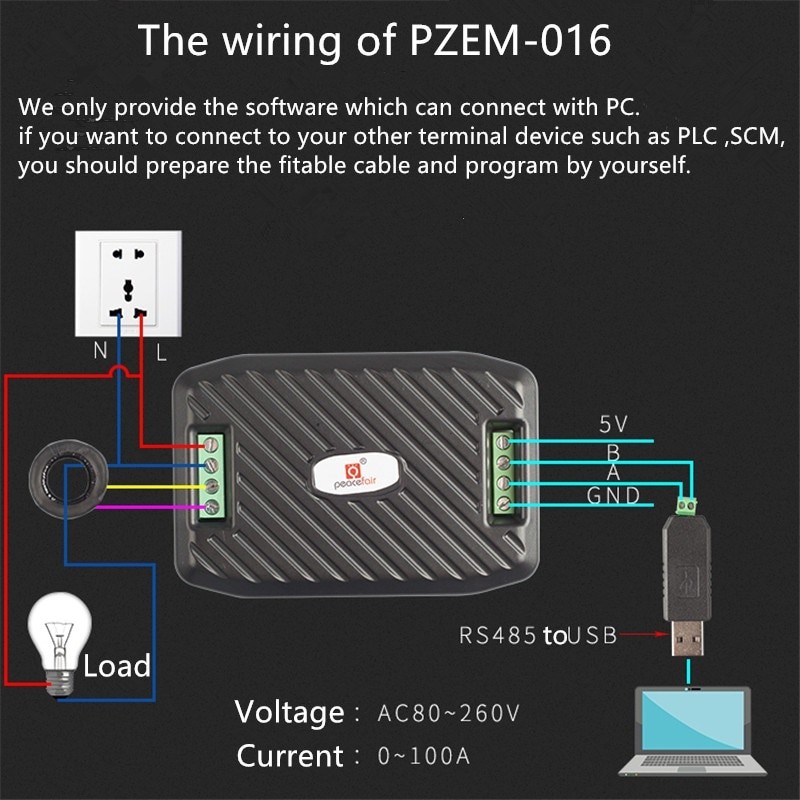

Communication interface: RS485 interface
