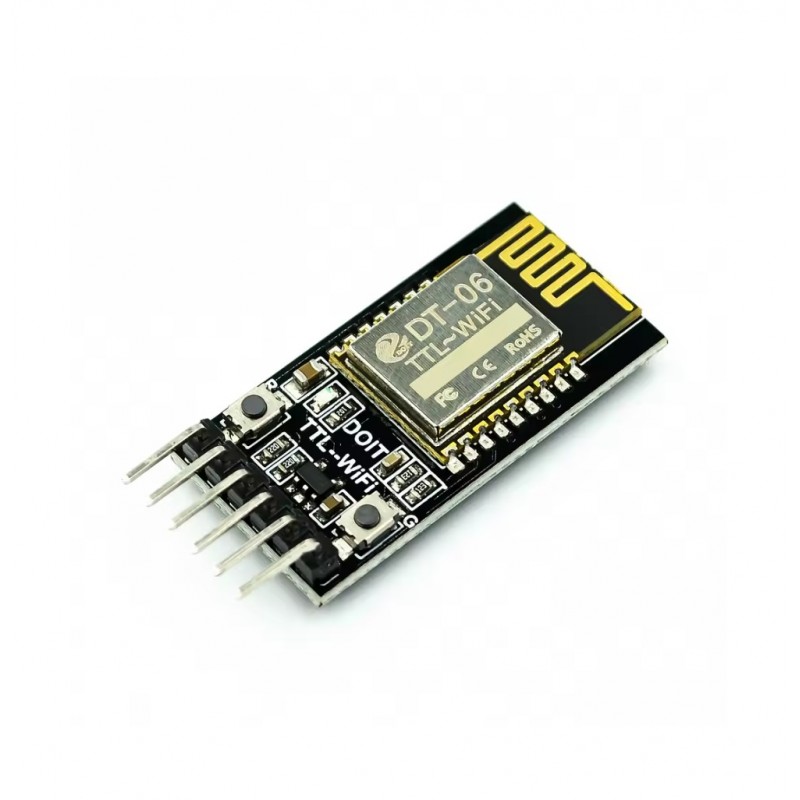

WiFi bevielės komunikacijos modulis DT-06 su adapteriu

DT-06 Wireless WiFi Serial Port Transparent Transmission Module TTL to WiFi Compatible with Bluetooth HC-06 interface ESP-M2

Introduction:

DT-06 Module is based on ESP8285 ESP M2 module and provides easy-to-use WIFI to any UART Serial port and is pin compatible to HC-06 Bluetooth modules. If a project already uses Bluetooth then you can very easily convert into Wifi without any change in code.

Using the built-in web interface transparent WIFI-UART communcation can be setup for TCP or UDP sockets on any port. This module requires NO configuration to get started!

This module powers up as a standalone AccessPoint at DOIT_WIFI_XXXX with an IP address of 192.168.4.1. Any message sent to 192.168.4.1 on port TCP 9000 will be sent to TX/RX @ 9600bps and vice-versa.

Connect module to Arduino or TX/RX of USB to Serial adapter. Connect phone or PC via Wifi to AccessPoint (SSID will show up as DOIT_WIFI_XXXX or something similar -- no password).

Use a TCP Terminal or your own applications to send and receive messages to and from 192.168.4.1 on port TCP 9000.

Product Features:

Fully compatible with the original electrical interface and physical interface for the serial transparent Bluetooth
Built-in the industrial transparent transmission firmware V3.0 with stability and reliability by using the Web Configuration
Built-in the high-performance WiFi module ESP-M2 with size: 34mm*17mm*4mm
Working voltage: 4.5V~6.0V, TTL working voltage: 3.3V (compatible with 5.0V)

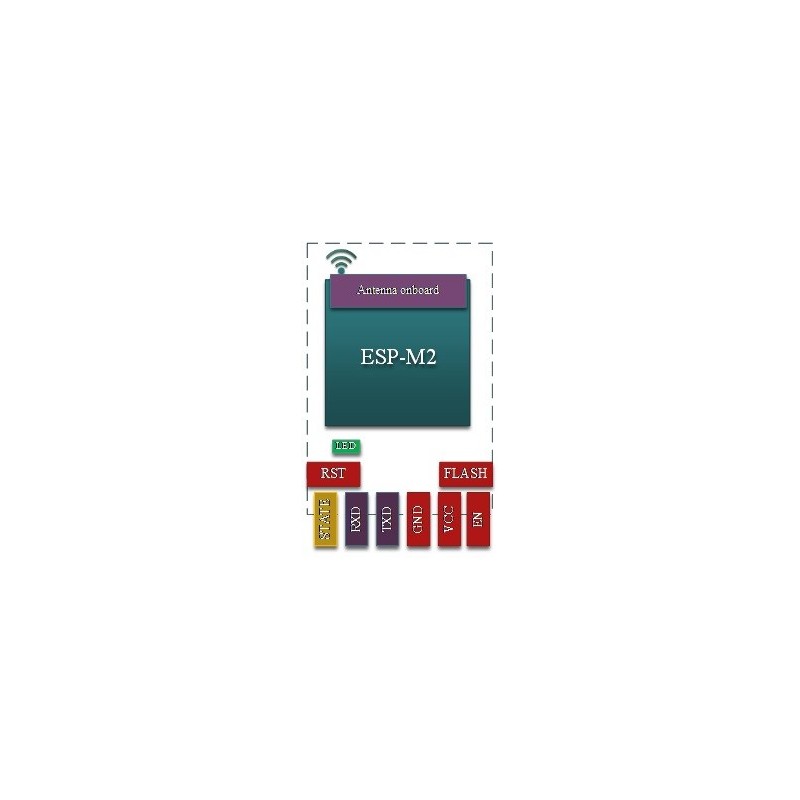

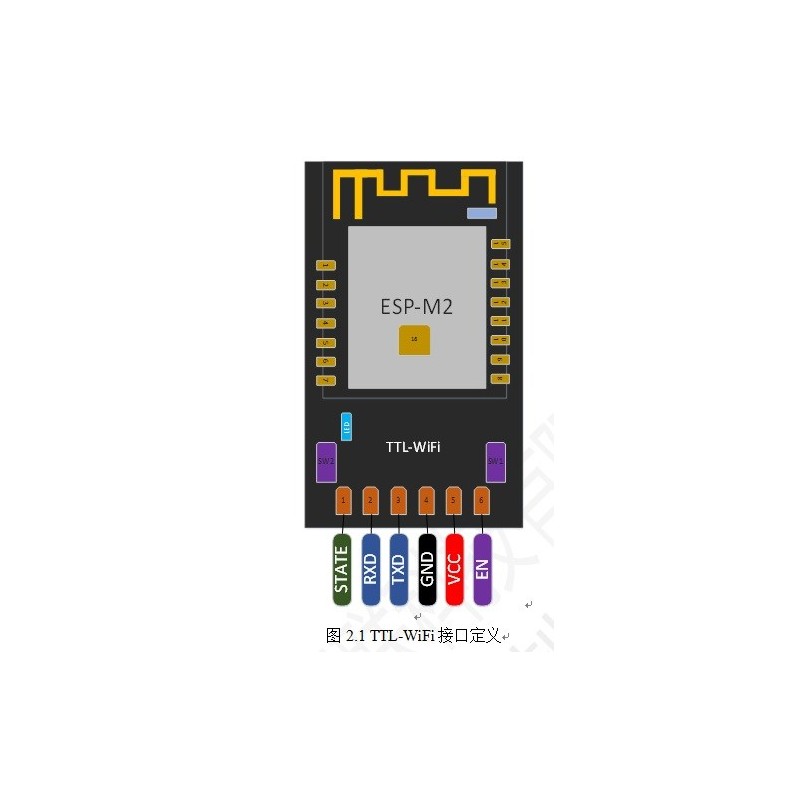

Provided pins: STATE, TXD, RXD, EN
Average current: 80mA; when data sent, it is 170mA; but it is 20μA at deep sleep mode
Support serial AT command
Support re-programmable, OTA firmware update
Seamless transparent transmission between serial and WiFi
Built-in HTTP Web Server, support configure parameters by web page
Support re-connect automatically at WiFi STA mode and TCP Client
Support set baud rate, data bit, parity check, stop bits, and/or subcontracting time
Support baud rate (bps): 300/600/1200/2400/4800/9600/19200/38400/57600/74800/115200/230400/460800/921600/1843200/3686400
Support AP enable, self-defined SSID/password, self-defined IP, and network duration
Automatically scan the peripheral WiFi hotspot, support STA enable, DHCP, self-defined IP
Support TCP Server, TCP Client, UDP Server, UDP Client and UDP local broadcast
Support DNS resolution automatically for the remote server address
Support checking the status by AT command
Provide IO4 to show the WiFi status
Working temperature: -40℃-125℃
Applications: smart home, wireless data connection and transparent transmission, smart car control, wireless serial printer, LED light industrial control etc.

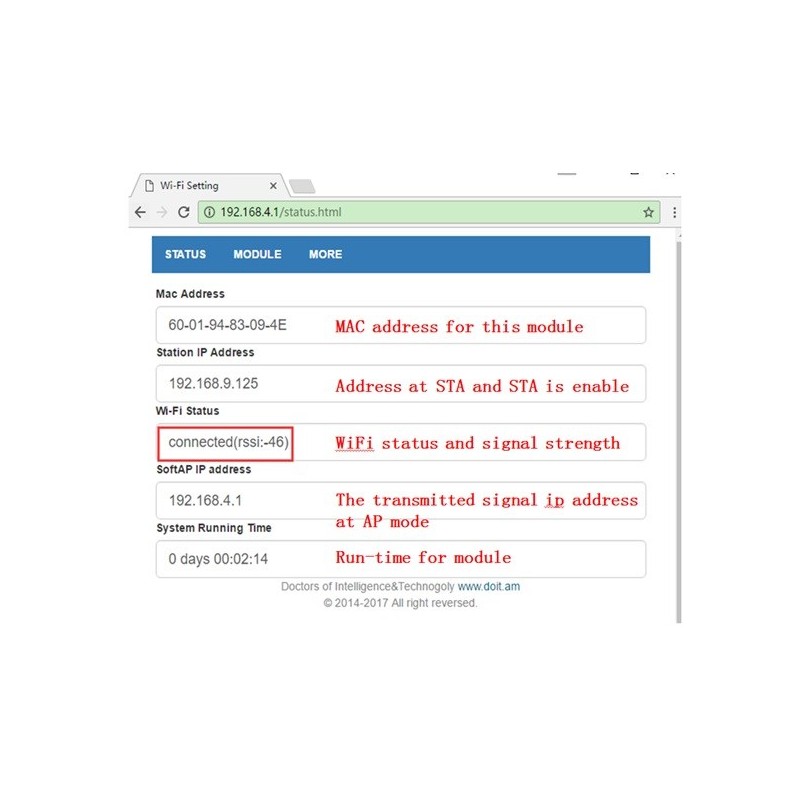

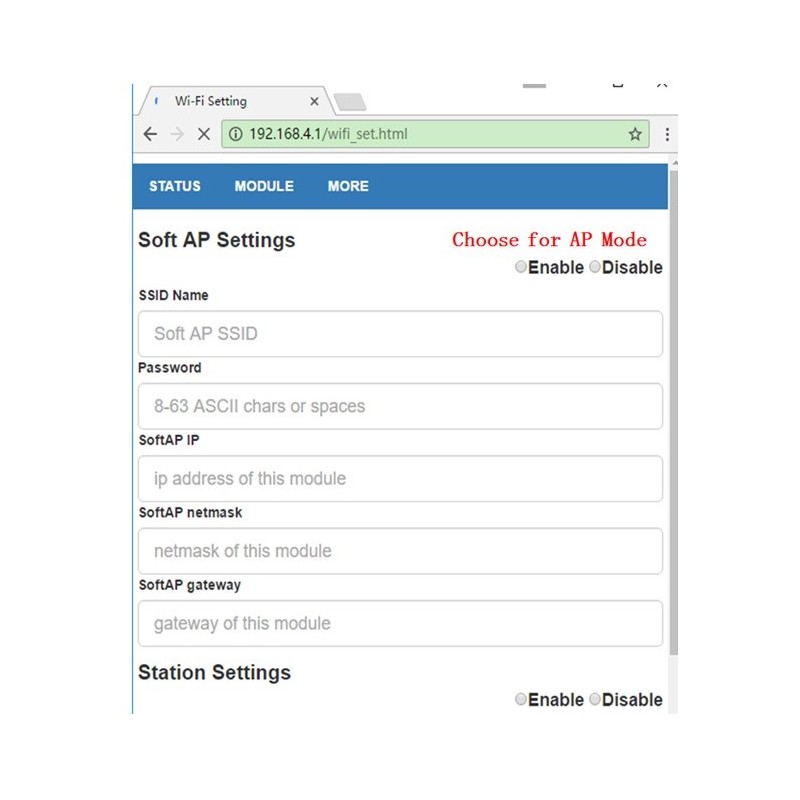

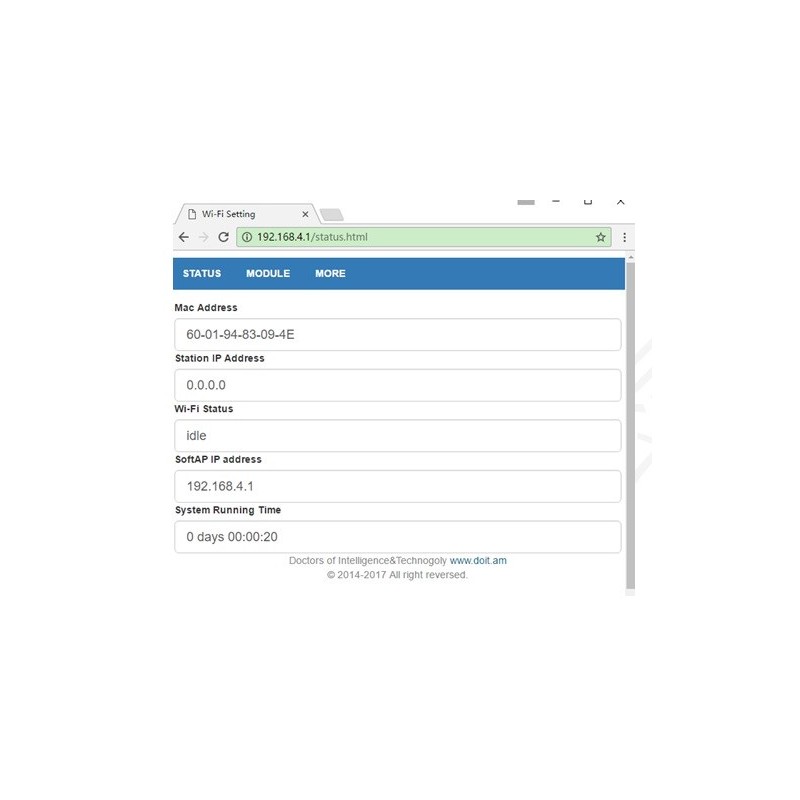

Usage of Web configuration:

This module is already built-in the HTTP Server. Thus, it can configure the parameters by the browsers on PC or mobile phone or other smart devices, without of need of any other tools or Apps. In the factory settings, the module works in AP mode, and the signal is ‘Doit_WiFi_xxxxxx', where, ‘xxxxxx’ is the last 6 number of MAC address of this module. Then, one can connect this WiFi hotspot by PCs or phones, and other smart devices (supportable Android and Ios, Windows) with no password.
