XY-BT-Mini Bluetooth 5.0 audio grotuvas

Prekės kodas: d1144b

Būklė: Nauja prekė

Šis Bluetooth audio modulis veikia kaip įprastinis BT garso įtaisas. Gali būti maitinamas per microUSB arba iš vienos celės ličio baterijos. Paprastas būdas iš Android ar kito įrenginio išvesti garsui bevieliu būdu. Juodos sp. grotuvas palaiko BT5.0 (senesnė raudonos sp. versija tik 4.2)

Smulkiau

Prekių kiekis mūsų sandėlyje: 31

Spausdinti

Charakteristikos

Suderinama su Arduino™ ir *duino	Taip
Kanalų skaičius	2
Būsenos indikacija	Taip. LED
Maitinimo įtampa	3,7V arba 5V (USB)
Jungties tipas	3,5mm

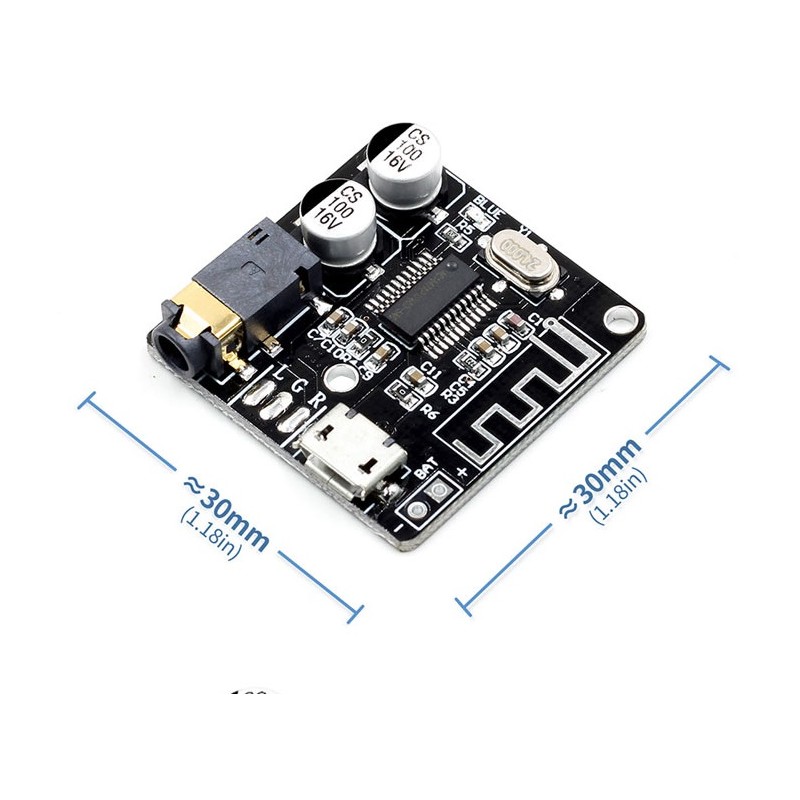

Matmenys	29 x 30 x 7 mm

Apie prekę

1. Features:

Bluetooth 4.1 support, support for automatic connection, WAV+APE+FLAC+MP3 lossless decoding, stereo output.

2. Characteristics:

Power Supply: 3.7-5V

SNR: 90dB

THD+N: -70dB

Crosstalk: -86dB

DNR: 91dB

Support Profile: A2DP/AVCTP/AVDTP/AVRCP/HFP

LOS: >15m

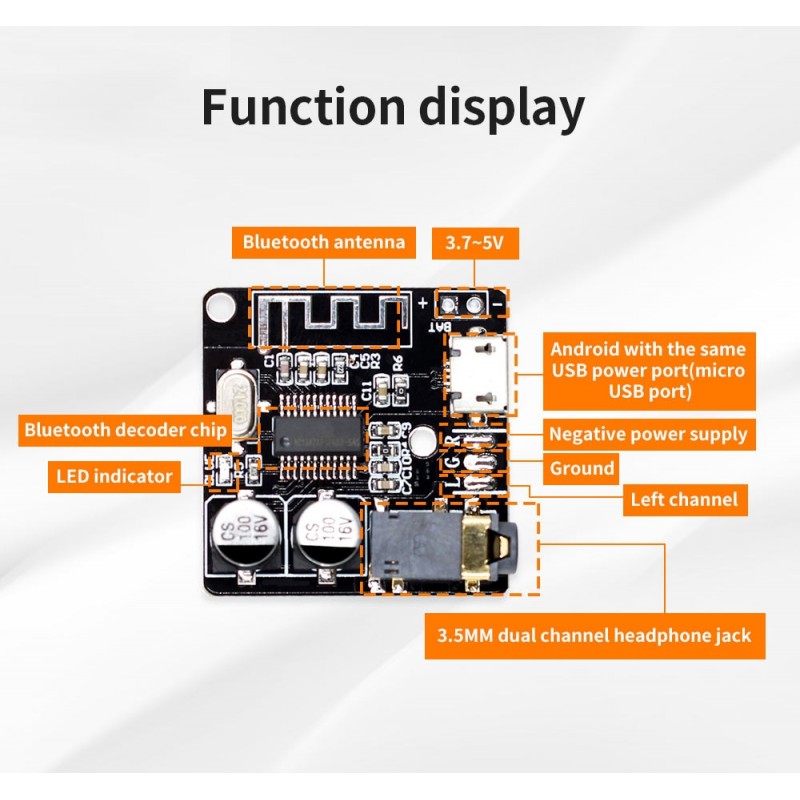

3.Interface details:

USB powered

Universal Micro USB 5V power supply

3.7-5V Supply Pad

External 3.7-5V lithium battery power conversion

LED indicator

Bluetooth mode long blue light

3.5mm stereo audio interface

Standard 3.5mm interface, output stereo sound source, plug in headphones, connect amplifiers and other devices

Instructions:

After the power is turned on, the blue indicator lights up and enters the Bluetooth mode; the English “The bluetooth device is ready to pair” is displayed, indicating that the Bluetooth mode is entered and waiting for pairing; the “XFW_BT” searched by the mobile phone Bluetooth is the device name of the decoding board. Click on the connection, the decoder board prompts "The bluetooth device is connected successfully", indicating that the decoder board and the mobile phone are connected successfully, you can play music.
