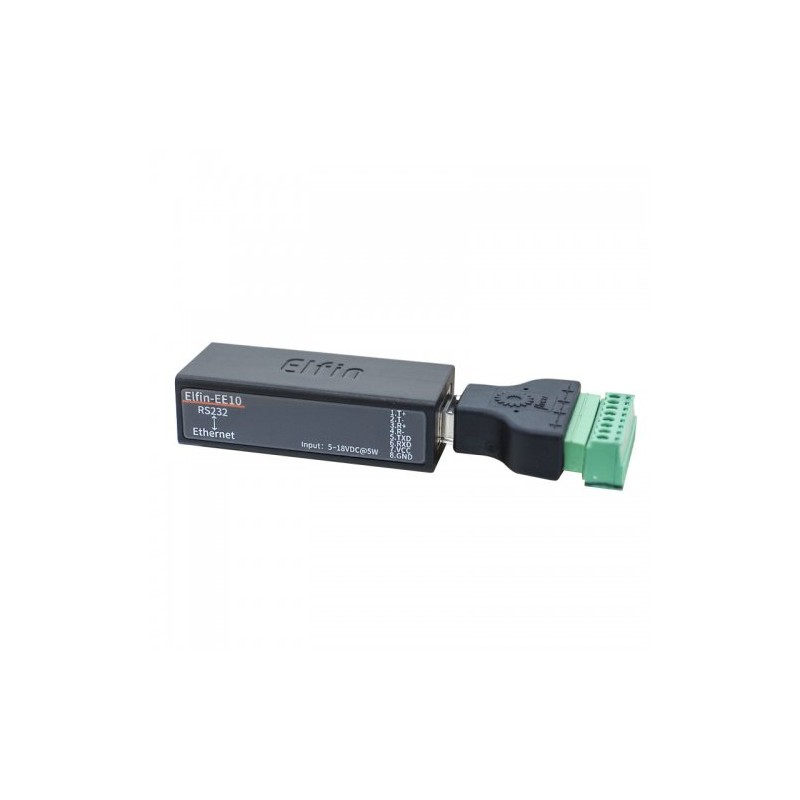

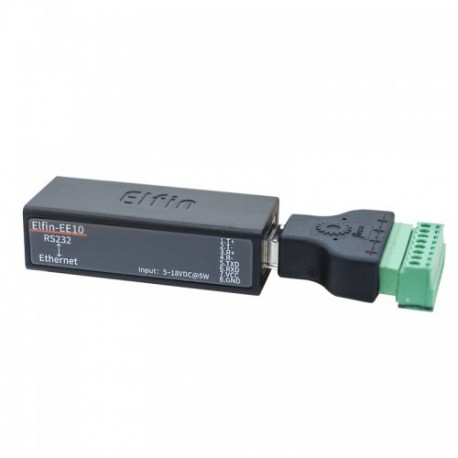

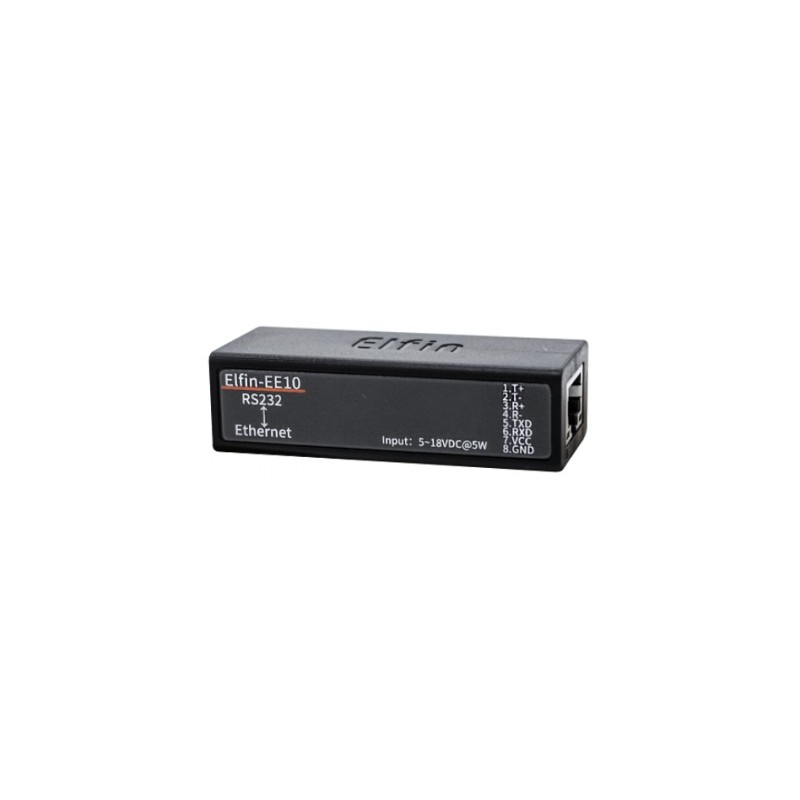

Elfin EE10 web serveris: Ethernet RS232 TCP gateway

Prekės kodas: d1218

Būklė: Nauja prekė

Nedidelis universalus tinklo įtaisas, leidžiantis jūsų RS232 naudojančias sistemas prijungti prie TCP/IP tinklų per Ethernet. Konfigūruojamas per web ir kt. būdais, palaiko įspūdingą protokolų sąrašą gateway funkcijai: Modbus RTU, Modbus TCP, WebSocket, HTTP, telnet, MQTT. Taip pat krūvą papildomų protokolų, tokių kaip AES, NTP ir kitos TCP/IP tinklų funkcijos.

Smulkiau

Šiuo metu prekės neturime

Spausdinti

Charakteristikos

Suderinama su Arduino™ ir *duino	Taip
Nominali darbinė įtampa	3,3V
Maitinimo įtampa	5-18 VDC
Flash atminties kiekis	2 Mb
SRAM atminties kiekis	128 Kb
Dažnis	96 MHz
Jungties tipas	RJ45
Kontaktų kiekis	5
Matmenys	61 x 26 x 18 mm (be jungčių ir priedų)
Komunikacijų sąsajos	1x RS232 (no flow ctrl); 1x Ethernet ( 10/100M Base-T) (IP, TCP, UDP, DHCP, DNS, HTTP Server/Client, ARP, BOOTP, AutoIP, ICMP, Web socket, Telnet, uPNP, NTP, Modbus TCP)
Maksimalus duomenų perdavimo greitis	460800bps
Galia	iki 0,4 W

Apie prekę

Elfin-EE1X Series support RS232/RS485 to Ethernet, It's world smallest ethernet serial server.

The Elfin-EE1X unit is a complete solution for serial port device connecting to network. This powerful device supports a 10/100BASE-T Ethernet connection, a reliable and proven operating system stored in flash memory, an embedded web server, a full TCP/IP protocol stack,and standards-based (AES) encryption.

Through Ethernet cable connect router with Elfin-EE1X serial server for data transfer, which makes the data transformation very simple.

Overview of Characteristic:

Cortex-M3 MCU with 2MB Flash and 128KB SRAM
Use FreeRTOS Operation System
Support TCP/IP/Telnet /Modbus TCP Protocol
Support RS232/RS485 To 10/100M Ethernet Conversion, Serial Speed Upto 460800 bps
Support 10/100M Ethernet Auto-Negotiation
Support Webpage Easy Configuration or PC IOTService Tool
Support Security Protocol Such As TLS/AES/DES3
Support Heart and Resister Packet Function
Support Web OTA Wireless Upgrade
Support Industrial Temperature: -40 to +85˚ C
Wide DC Input 5~18VDC
Size: 61 x 26 x 17.8 mm (L x W x H)

StorageTemp.	-45 ~ 105°C， 5 ~ 95% RH
Processor	Cortex-M3
Basic Frequency	96MHz
Flash	2MB
SDRAM	128KB
Operating System	FreeRTOS
Ethernet	1
Interface Standard	10/100M Base-T Auto-Negotiation
Network Protocol	IP，TCP，UDP，DHCP，DNS，HTTP Server/Client，ARP， AutoIP， ICMP， Telnet，NTP， Modbus TCP
Security Protocol	TLS 1.2 AES 128Bit DES3
Port Number	EE10：1 RS232 EE11：1 RS485
Data Bits	5，6，7，8
Stop Bit	1，2
Check Bit	None，Even，Odd
Baud Rate	TTL：600 bps~460800bps
Flow Control	No Flow Control Half Flow Control(RS485) Software Xon/ Xoff flow control
Configuration	Http Web Configuration Customization of HTTP Web Pages
Size	61 x 26 x 17.8 mm
Input Voltage	5～18VDC
Power	<400mW
Network Transformer	Integrated
Work Temp.	-40 ~ 85°C
