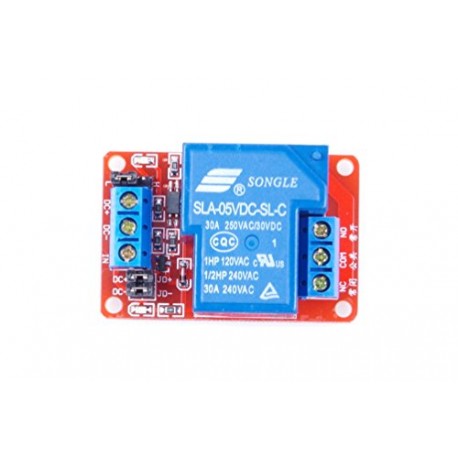

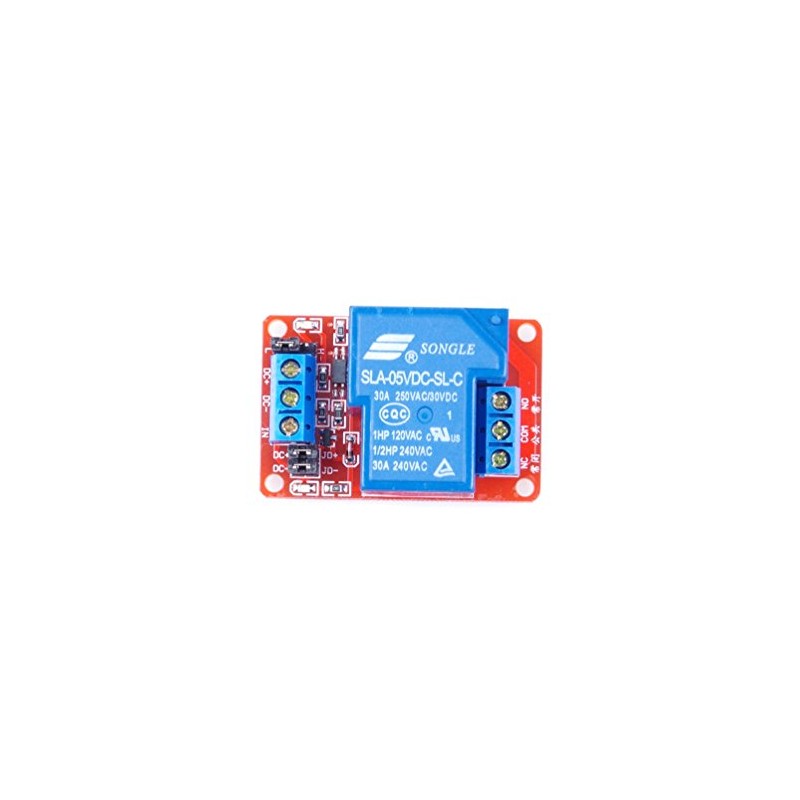

5V relės modulis 30A

• Valdymui naudojama ~5 mA srovė
• Valdymo įtampa 5V
• Didelės valdomos srovės relė: AC250V 30A; DC30V 30A
• Indikacijos LED įėjimui

5V Relay module
Quiescent current: 5mA
Maximum current: 190mA
Trigger current: 2-4mA
Trigger power (low): 0-1.5V
High: 2.5-5V
Pin description:
1. DC+: Module DC power supply anode (trigger terminal voltage anode)
2. DC-: Module DC power supply negative electrode (trigger terminal voltage negative electrode)
3.IN: Signal trigger terminal (default trigger voltage is the same as power supply)
4.JD+: Positive voltage of relay control terminal
5.JD-: The negative pole of the control terminal voltage of the relay
6. Short-circuit DC+ and JD+ with jumper caps, and short-circuit DC- and JD- with jumper caps. The trigger terminal and the relay control terminal have the same voltage
7. High and low level trigger mode selection, as shown in the figure, when the jumper is connected to the L terminal, the IN terminal is a low level trigger, and when it is connected to the H terminal, it is a high level trigger
8. Normally closed terminal (NC): normally closed terminal of the relay
9. Common terminal (COM): relay common terminal
10. Normally open terminal (NO): Relay normally open terminal
