d0935
Nauja prekė
Keičiamų parametrų (dažnis, amplitudė) sinusoidės ir stačiakampio formos signalų generatorius. Turi nuoseklų ir lygiagretų įėjimus
Prekių kiekis mūsų sandėlyje: 5
Dėmesio: Paskutinės prekės!
Pasiekiama:
Suderinama su Arduino™ ir *duino | Taip |
Maitinimo įtampa | 3,3V arba 5V |
Maksimali maitinimo įtampa | 6 VDC |
Dažnis | 125 MHz |
Matmenys | 45 x 25 x 16 mm |

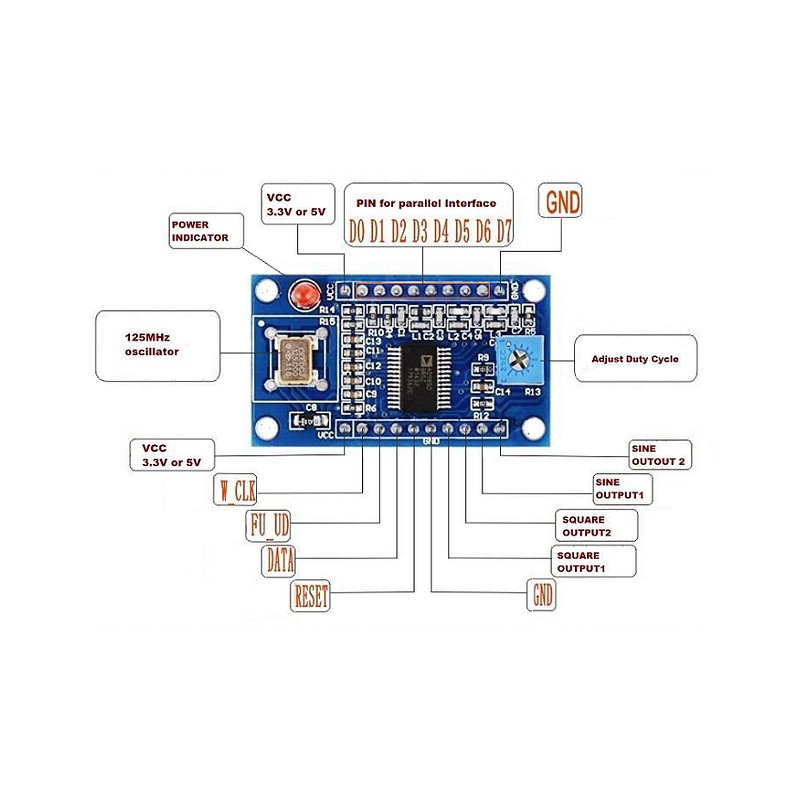

Komunikacijų sąsajos | Nuosekli ir lygiagreti sąsajos |
Išėjimo tipas | Analoginis |
Features:
2 sine wave and 2 squarewave output.
After the 20-30MHz frequency harmonics increases, the waveform will be less and less clean.
Low-pass filter with 70MHz, so the waveform better than SN.
DA produced the benchmark pin (PIN12) leads for easy adjustment to do the magnitude of the output waveform application.
Comparator reference input voltage generated by the variable resistor, the resistor can be adjusted duty cycle squarewave of different.
AD9850 module adopts 125MHz crystal oscillator
Specifications:
AD9850: 0-40MHz.
Wave: 0-1MHz
Size: 4.5 x 2.5cm/1.7 x 0.9inch
Weight:10g
Package Included:
1 x AD9850 Signal Generator Module
