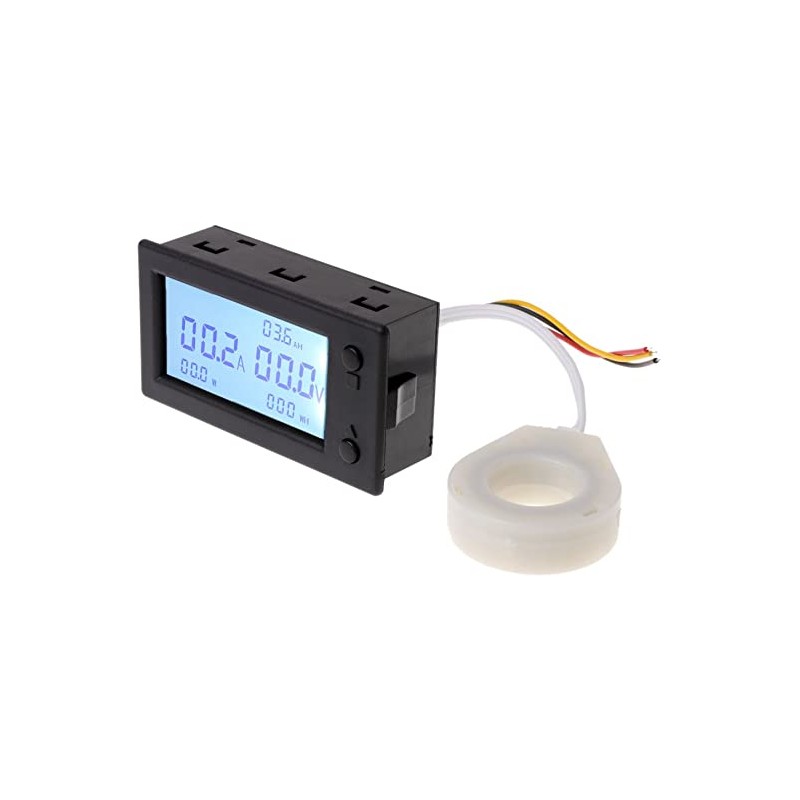

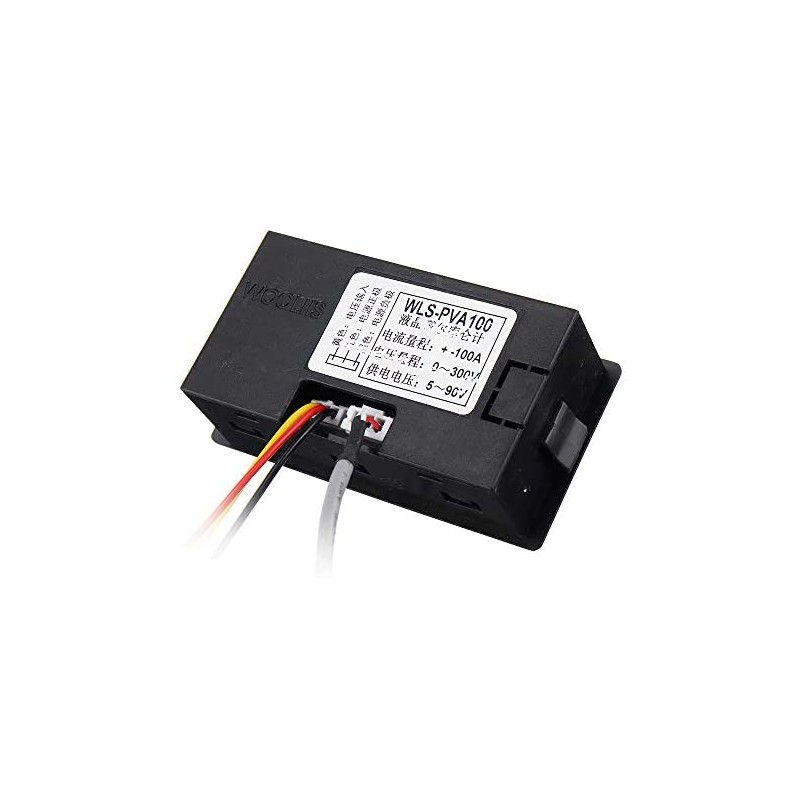

Baterijos įkrovos stebėjimo ir elektros energijos skaitiklis (iki 300V) su DC srovės (iki 100A) matavimo kilpa

1.Functions

1.Measurement of Battery percentage and remaining battery AH number.
2.Measurement of DC  bidirectional current.
3.Measurement of DC  bidirectional power.
4.Measurement of DC  bidirectional accumulative electric energy.
5.High voltage alarm flicker function.
6.Low voltage alarm flicker function.
7.High current alarm flicker function.
8.Low electricity alarm flicker function.
9.The function of reach the full voltage (this voltage can be set by youself) automatically fill the battery.
10.Zero current can be cleared.
11.Accumulative energy can be cleared.
12.The backlight can be closed or opened.
13.Store data when power off.
14.Hall sensor isolation type measurement, more safe and reliable, easy to install.
15.Using STN full view LCD screen, clear display.
16.Super wide power supply voltage range: DC5～90V.

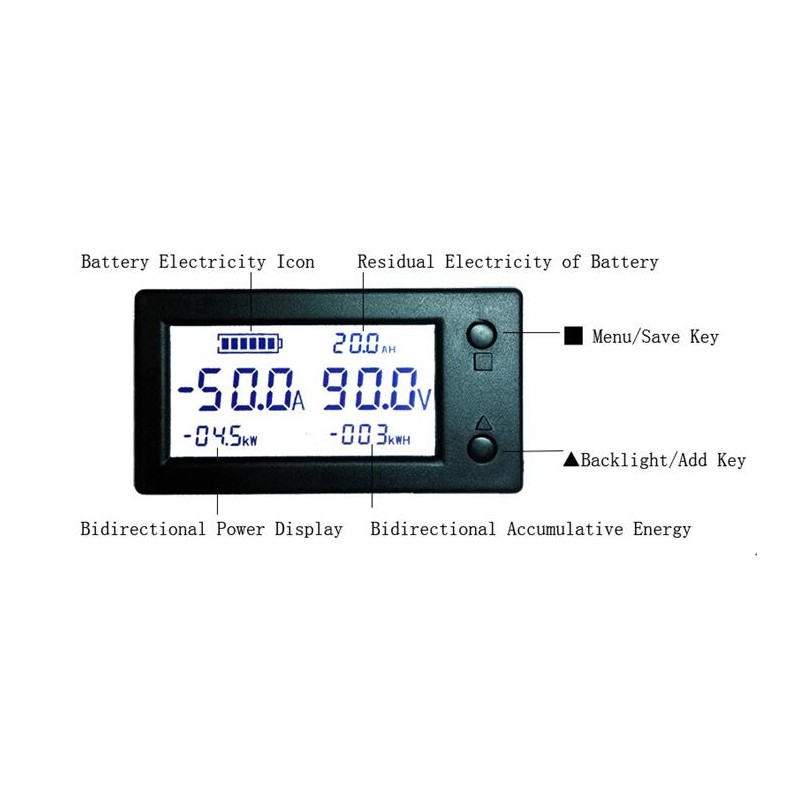

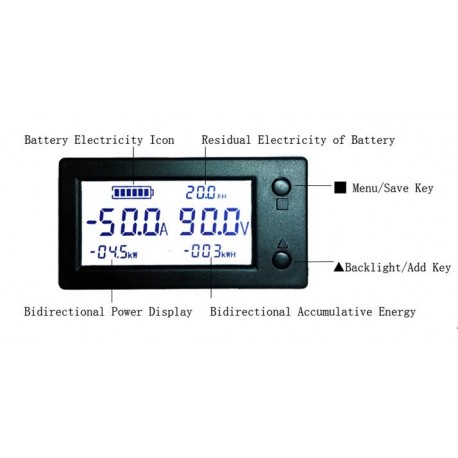

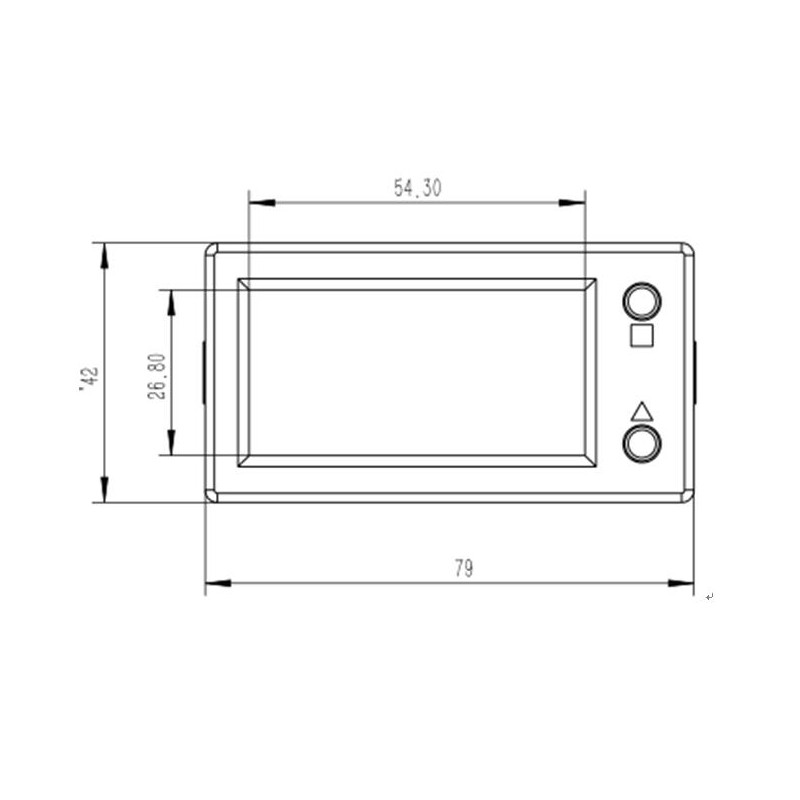

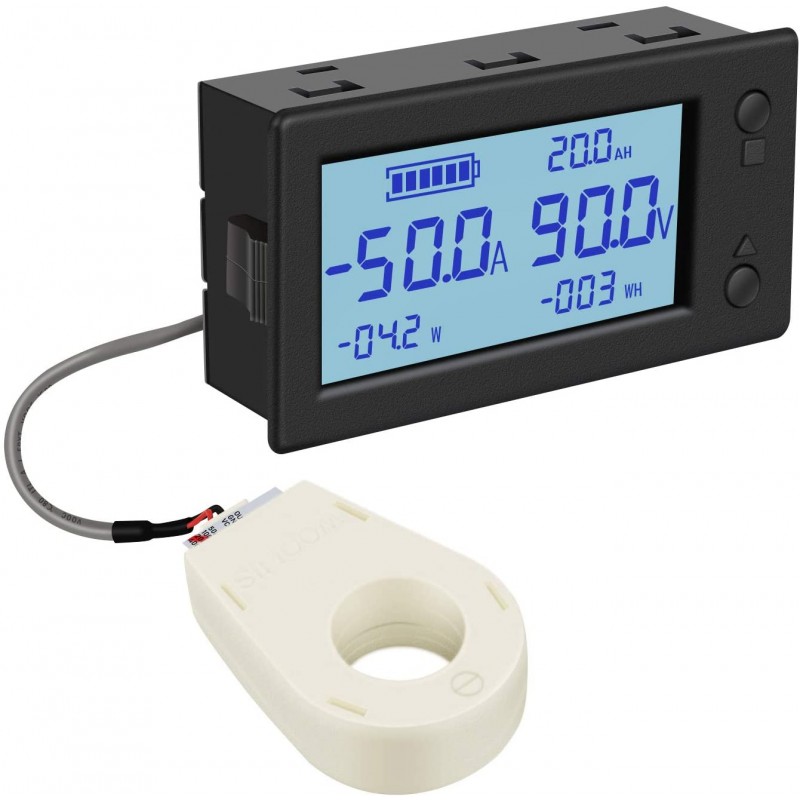

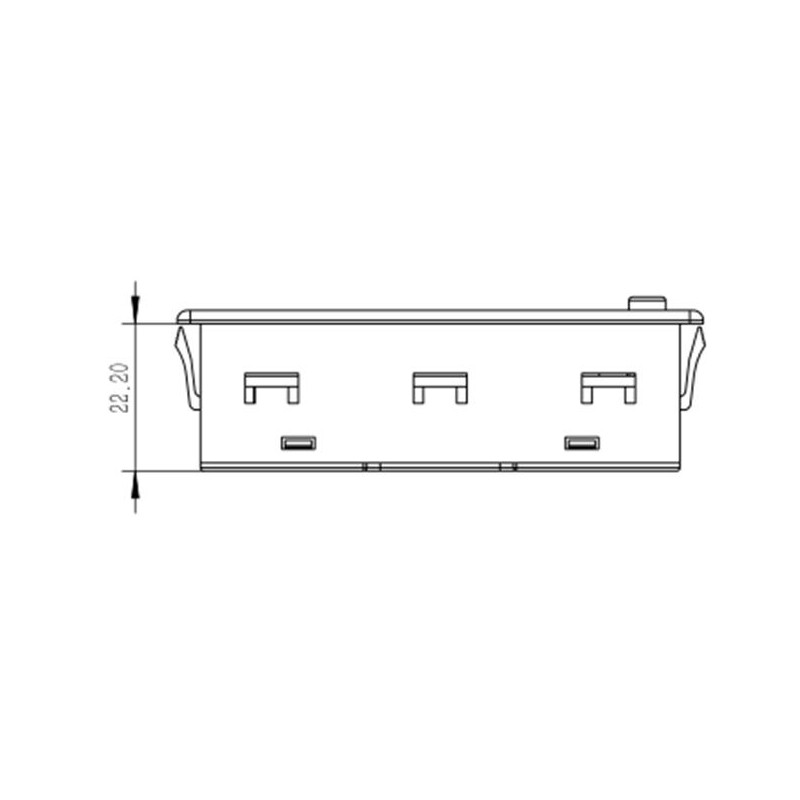

2.LCD Panel and Key

3. Valdymas

█ – Menu/išsaugojimo mygtukas

▲– Apšvietimo/+ mygtukas

Apšvietimo įjungimas/išjungimas: paspauskite ▲ mygtuką;

Srovės parodymo kalibravimas (nulio nustatymas): palaikykite ▲ mygtuką (apie 3s);

Energijos kiekio nunulinimas: palaikykite █ mygtuką (apie 3s);

Parametrai (paspauskite █ mygtuką, kad patektumėte į meniu):

•          “AH XXX.X” Baterijos talpos nustatymas
•          “FU XXX.X” Baterijos pilnos įkrovos įtampos nustatymas
•          “HU XXX.X” Viršįtampio aliarmo nustatymas
•           “LU XXX.X” Per žemos įtampos aliarmo nustatymas
•           “HA XXX.X” Viršsrovio aliarmo nustatymas

Parametrai didinami spaudinėjant ▲ mygtuką, o išsaugomi palaikius █ mygtuką.

Gamykliškai aliarmai nustatyti į 000.0, t.y. aliarmai išjungti.

​5.Wiring Instructions

There are three wires in the head of the table, as follows:

【1】The black wire is connected to the battery negative pole.

【2】The Red wire connection power supply positive pole.

【3】The Yellow wire is connected to the battery positive pole

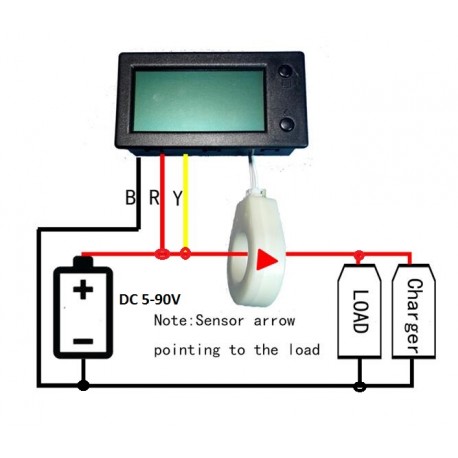

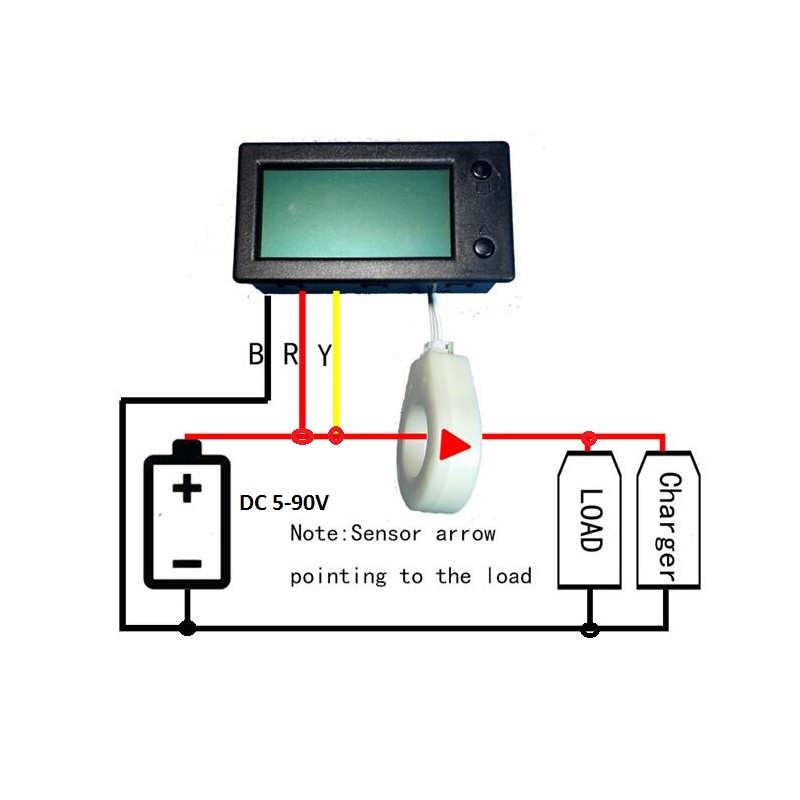

When the measured voltage range is DC5～90V，the red and yellow wires are connected in parallel to the battery positive pole.As follows:

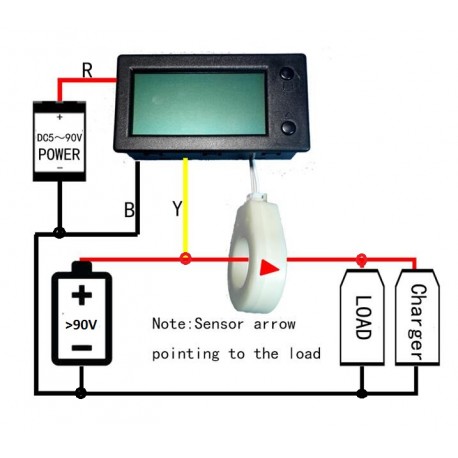

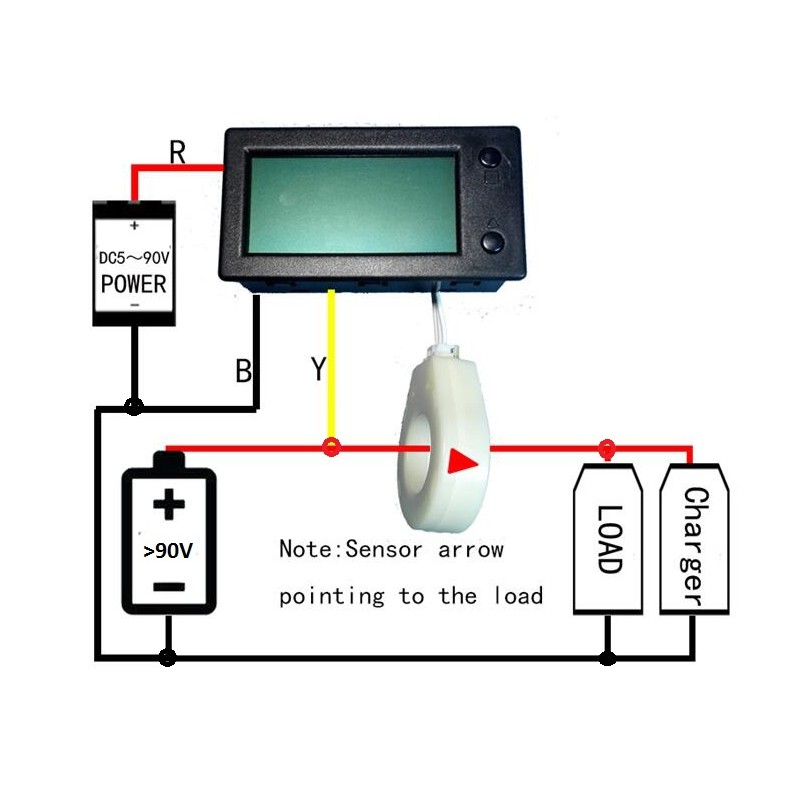

When the measured voltage range is over DC5～90V，we should  look for another power supply for Coulometer.As follows:

7.Precautions For Use

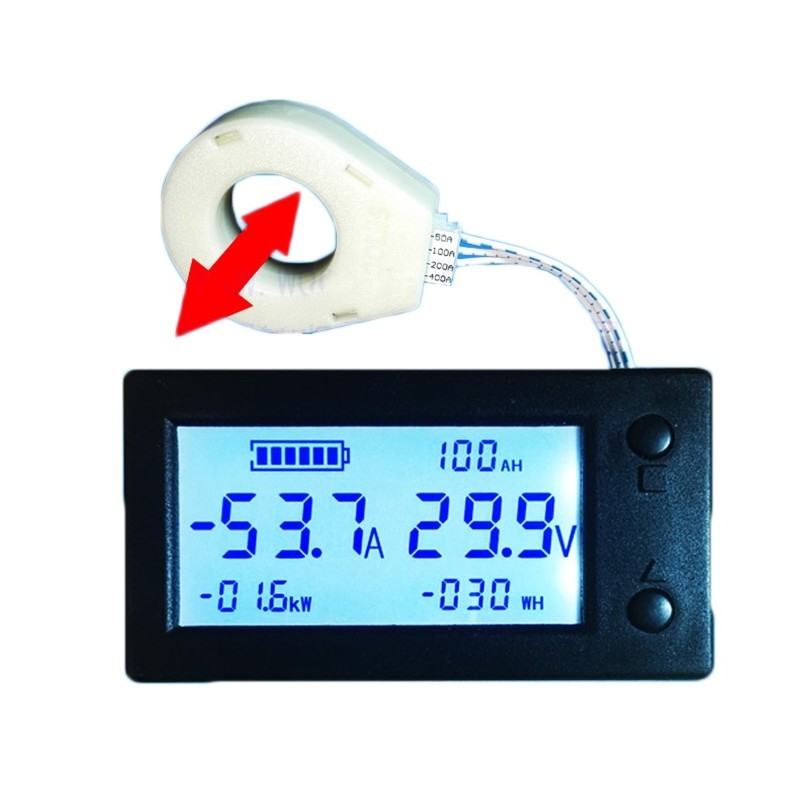

【1】The battery discharge ,coulomb shows display positive current.The battery charge ,coulomb shows display negative current. If not,the direction of the sensor is wrong. You show turn the direction of the sensor to another direction.

【2】The newly installed Coulomb needs to clean up the current at an empty load.

【3】The rated capacity of the battery and the maximum electric voltage of the battery must be set up. The newly installed Coulomb needs to charge the battery to full after setting up the parameters，then residual battery  power can be displayed  normally

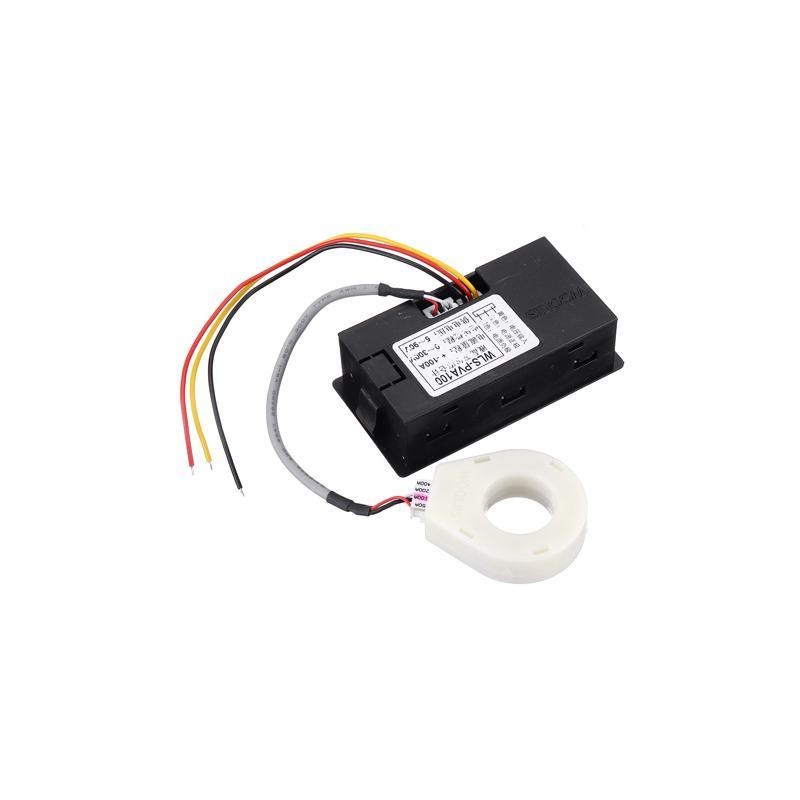

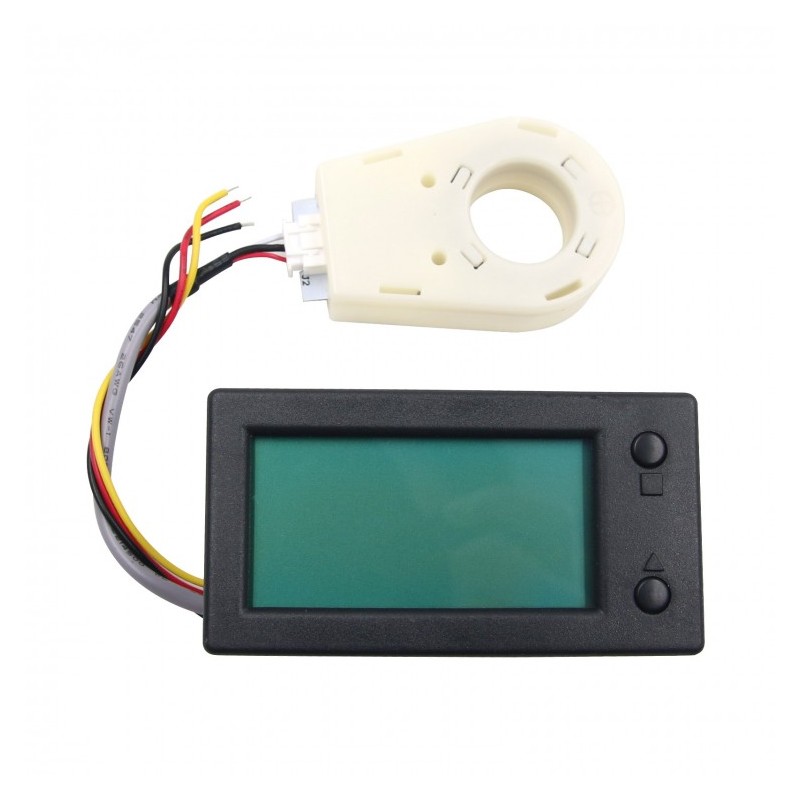

Package include:

1pcs meter

1pcs hall sensor

1pcs 15cm sensor extension cable

1pcs 3p power supply cable
