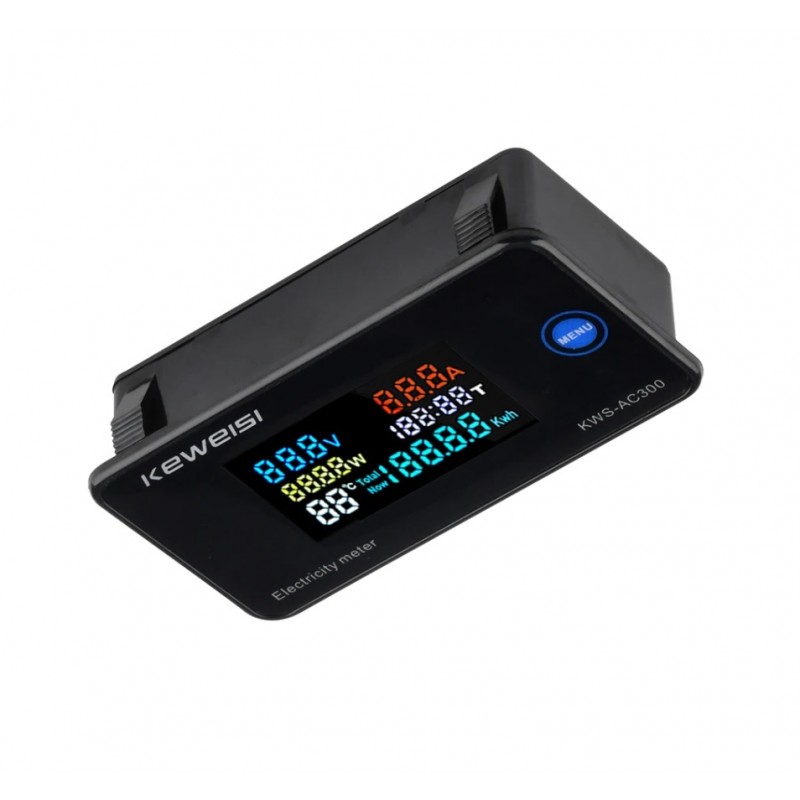

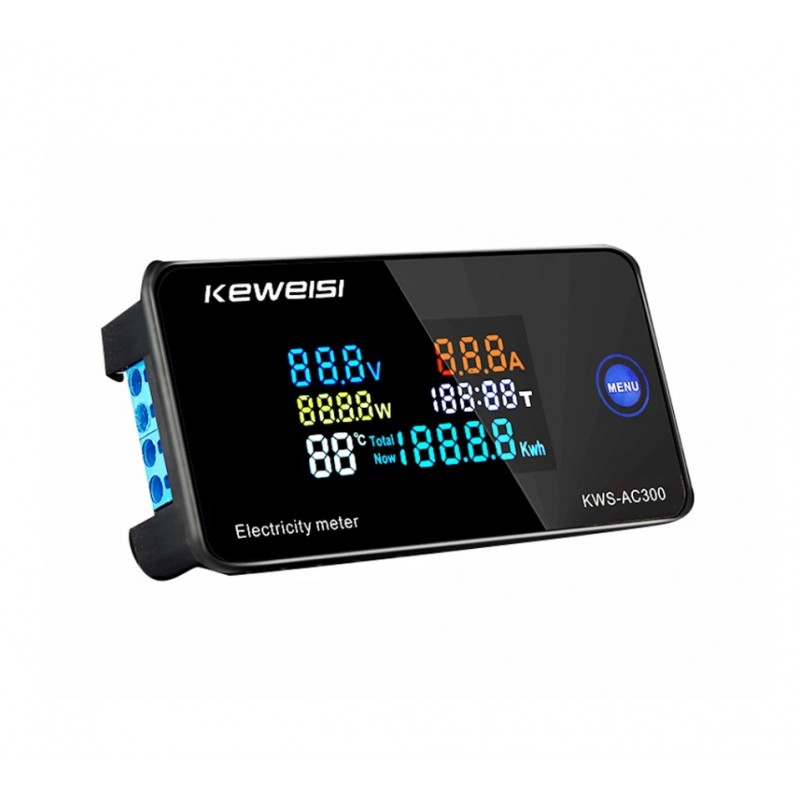

Tinklo analizatorius ir skaitiklis KWS-AC300-20A (iki 300V iki 20A AC)

Model:AC300-20A
1.Voltage: AC50-300V
2.Current: 0-20A
3.Power: 0-30KW
4.Capacity: 0.01-19999Kwh
5.Timing: 0-200H
6.Temperature: -10 ° C to 99 ° C

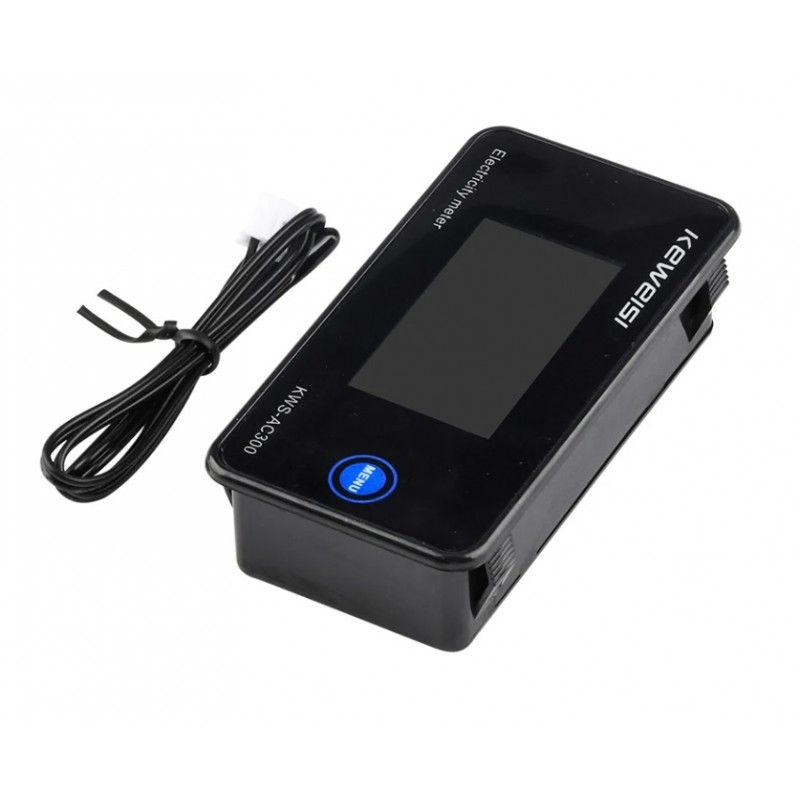

7.Package include: Meter, Temperature sensor.

Functions:

1. Measeures voltage, current, power, timing, power factor, consumed electical energy, temperature
2. Electic energy and tming can be reset
3. Electic energy and timing have power down memory function
4. Rated frequency 45-65Hz

Instructions:

Click the MENU button on the panel to view the current electrical energy and cumulative electrical energy. Electric energy and timing reset method: Press and hold the MENU button for 5 seconds, the number in the timing area will flash, then click the button to select timing, current electrical energy and cumulative electrical energy reset. When the number flashes, double-click the button to reset. Press and hold the button for 5 seconds to save the settings.
