SPI garso kodavimo modulis su VS1053 (Ogg Vorbis/MP3/AAC/WMA/FLAC/ MIDI AUDIO CODEC)

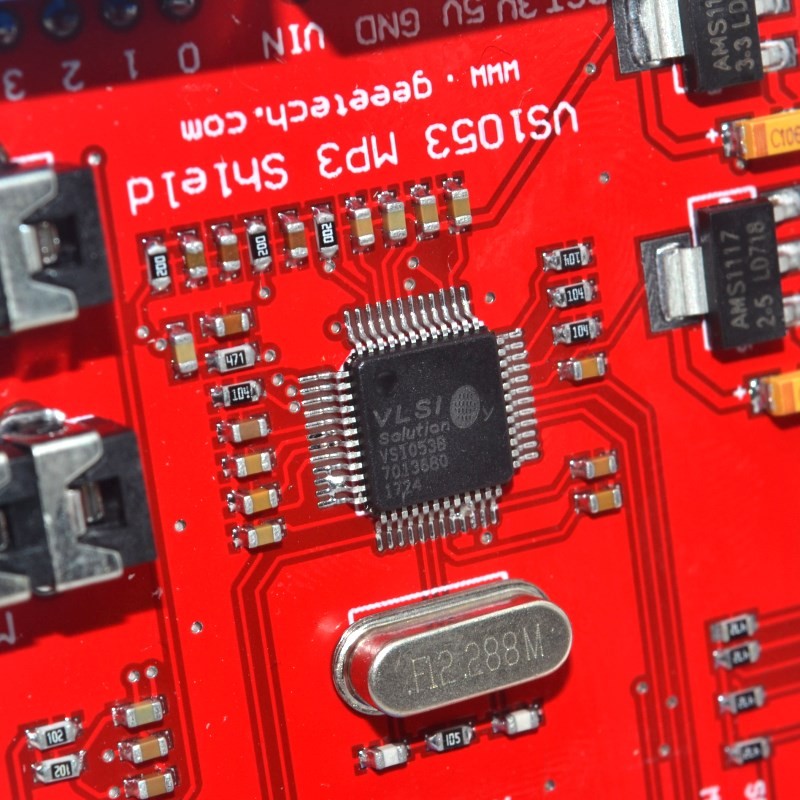

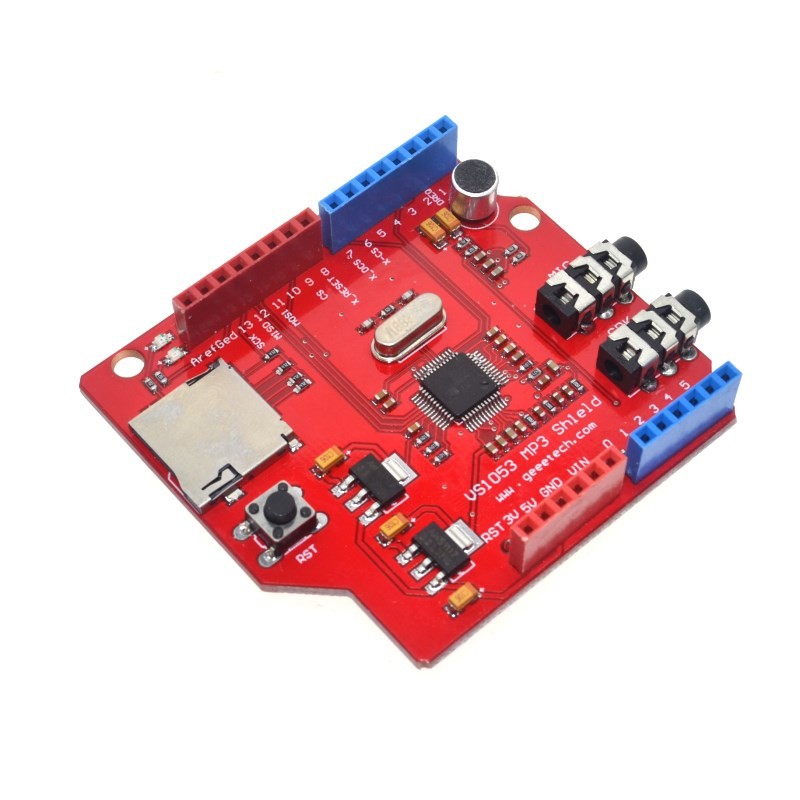

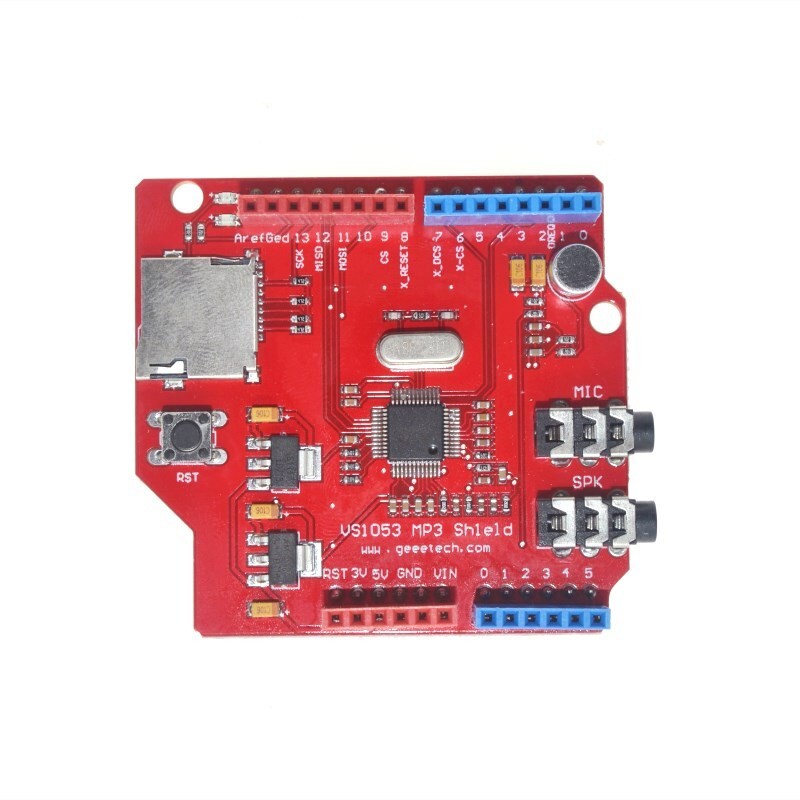

This MP3 shield board is designed based on VS1053B from VLSI.

using this shiled you can plug for FOR FOR ARDUINO UNO/MEGA direcly as showing in pic,
dont' need need to hook up with jumpers,
it's becomes more easy to play music compared with the tiny mp3 breakout board.
VS1053 is a versatile MP3 codec processor that is capable of decoding a variety of music formats,
including Ogg Vorbis/MP3/AAC/WMA/MIDI audio.
For the best headphone listening experience,
the VS1053 includes EarSpeaker spatial processing which
accurately simulates how a room with stereo loudspeakers would sound.
In addition to being able to decode all major formats,
VS1053 is capable of recording in Ogg Vobis file.


With the TF card slot on the other side of the board,
you can play mp3 files from TF card using this breakout.
It is easily to drop it in your project or make a mp3 player using your microcontroller.
Features Can play a variety of music formats,
support for OGG encoding real-time recording SPI interface,
the control signal lines are led out A headphone and stereo output
A microphone for recording A line_in input interface
Power indicator 3.3V and 2.8V of LDO chip AMS-1117 on board,
provides up to 800mA current
A single power supply: +5 VDC 12.288 Mhz crystal TF cart slot.

Features

Can play a variety of music formats, support for OGG encoding real-time recording
SPI interface, the control signal lines are led out
A headphone and stereo output
A microphone for recording
A line_in input interface
Power indicator
3.3V and 2.8V of LDO chip AMS-1117 on board, provides up to 800mA current
A single power supply: +5 VDC
12.288 Mhz crystal
TF card slot
