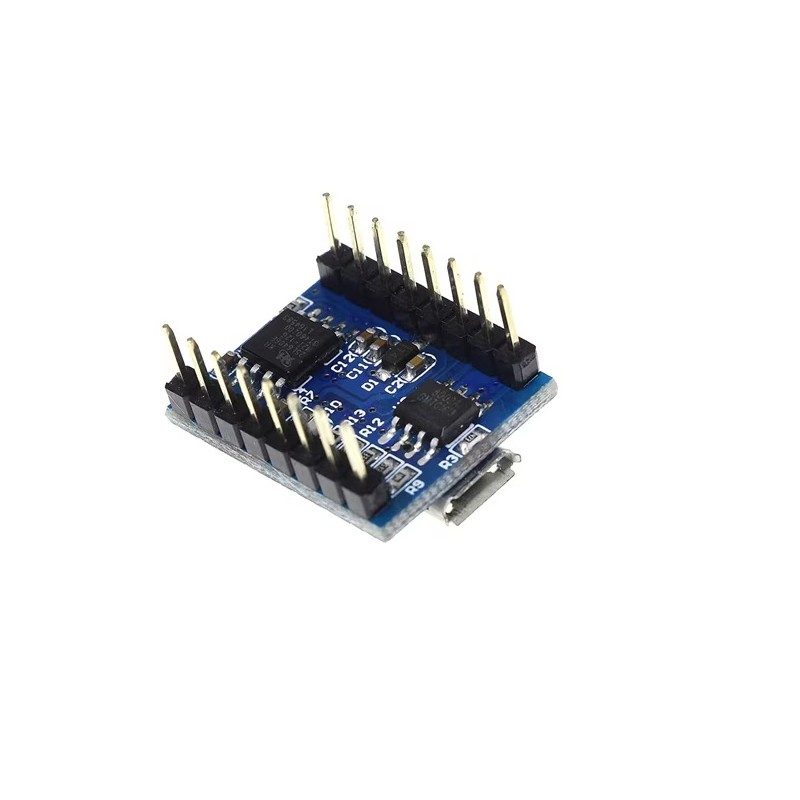

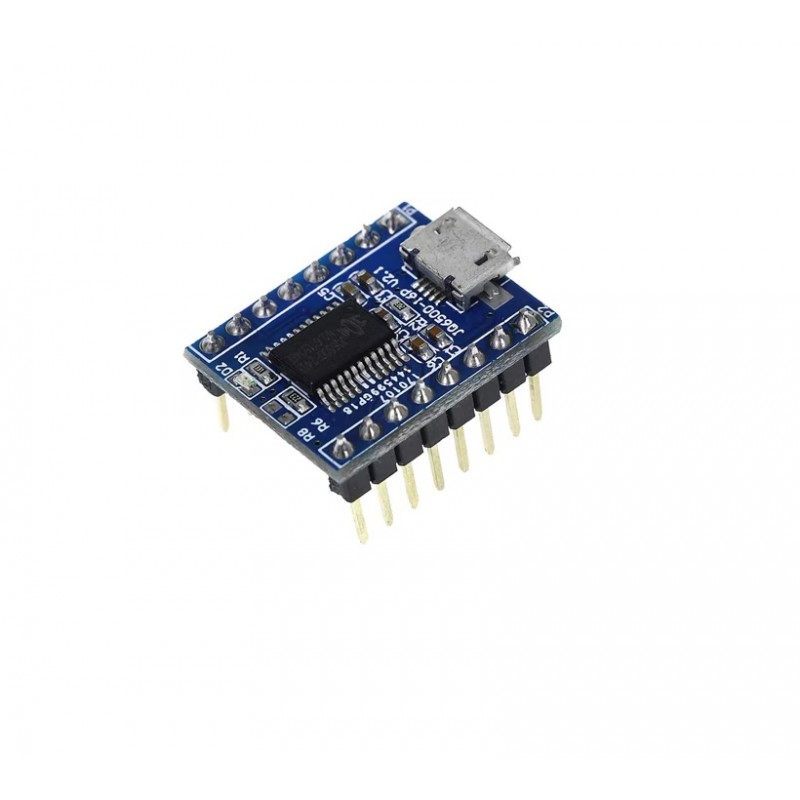

MP3 grotuvo modulis JQ6500 su 16Mbit Flash atmintine

The JQ6500 modules are simple modules which can play standard mono or stereo MP3 files, you can control with buttons (no programming needed), or via a serial communications protocol (JQ6500 Arduino Library available).

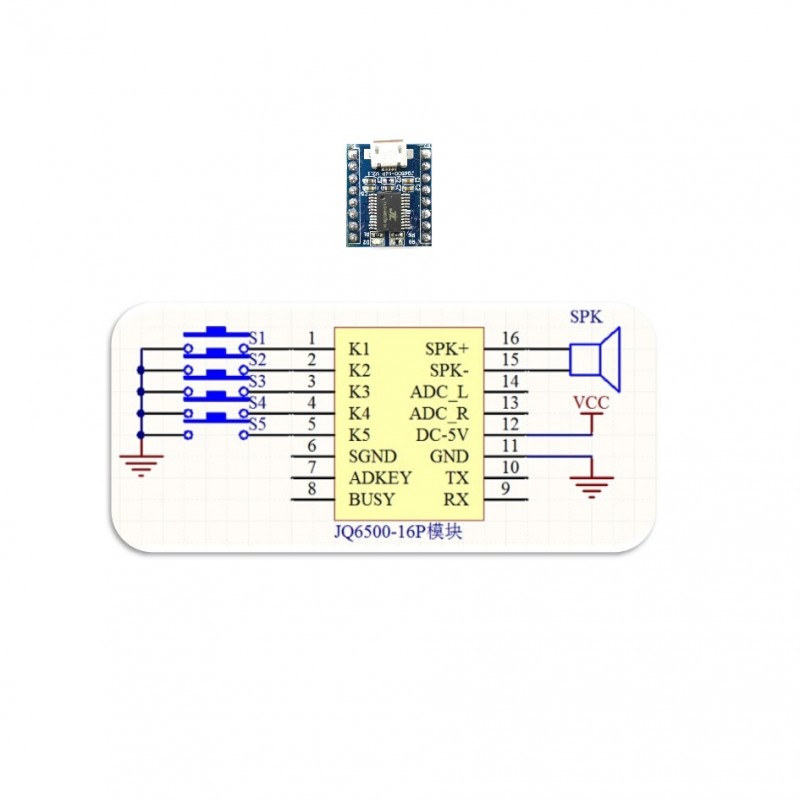

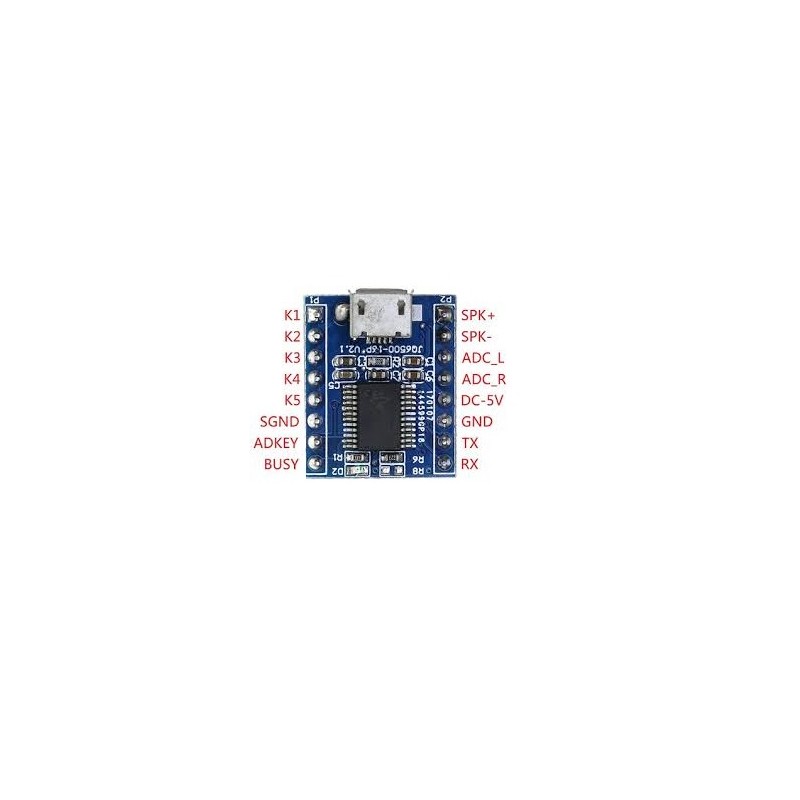

These modules have their sound files loaded into flash over USB and they are configured and controlled via serial UART.  There is a built in power amplifier that can drive a speaker directly.  The other feature of this particular module is that there are 5 dedicated pins that can be used to select 1 of 5 sound files just by pulling the pin low.  Seems like something that would be useful to add sound to projects.

Support all the bit rate 11172-3 and ISO13813-3 layer3 audio decoding

Sampling rate support (KHZ) : 8/11.025/12/16/22.05/24/32/44.1/48

Support Normal.Jazz.Classic.Pop.Rock sound effect

16M device, UART interface, standard serial, TTL level, baud rate can be set
